ADVANCED MOTION CONTROLS伺服驅動器A12A100技術參數
Power Specifications | |
DC Supply Voltage Range VDC | 20 - 80 |
DC Bus Over Voltage Limit VDC | 88 |
DC Bus Under Voltage Limit VDC | 15 |
Maximum Peak Output Current A | 12 |
Maximum Continuous Output Current A 6 | |
Maximum Continuous Output Power at Continuous Current W | 456 |
Maximum Power Dissipation at Continuous Current W | 24 |
Minimum Load Inductance (Line-To-Line) μH | 200 |
Internal Bus Capacitance mF | 141 |
Low Voltage Supply Outputs | ±5 VDC (3 mA) |
Switching Frequency kHz | 38 |
Control Specifications | |
Command Sources | ±10 V Analog |
Feedback Supported | Tachometer (±48 VDC) |
Commutation Methods | Brush Type |
Modes of Operation | Current, Voltage, IR Compensation, Tachometer Velocity |
Motors Supported | Single Phase (Brushed, Voice Coil, Inductive Load) |
Hardware Protection | Over-Current, Over-Temperature, Over-Voltage, Under-Voltage, Short-Circuit (Phase-Phase & Phase-Ground) |
Primary I/O Logic Level | 5V TTL |
Mechanical Specifications | |
Agency Approvals | CE Class A (EMC), CE Class A (LVD), cUL, RoHS II, UL |
Size (H x W x D) mm (in) | 129.3 x 75.8 x 25.1 (5.09 x 2.98 x 0.99) |
Weight g (oz) | 249.5 (8.8) |
Heatsink (Base) Temperature Range °C (°F) | 0 - 65 (32 - 149) |
Storage Temperature Range °C (°F) | -40 - 85 (-40 - 185) |
Form Factor | Panel Mount |
P1 Connector | 16-pin, 2.54 mm spaced, friction lock header |
P2 Connector | 5-port, 5.08 mm spaced, quick disconnect terminal |
ADVANCED MOTION CONTROLS伺服驅動器A12A100產品介紹
A12A100 PWM 伺服驅動器設計用于以高開關頻率驅動有刷直流電機。單個紅色/綠色 LED 指示運行狀態。該驅動器具有全面的過壓、欠壓、過流、過熱和電機、接地和電源線短路保護。此外，該驅動器可以與數字控制器接口或獨立使用，并且只需要一個未穩壓的直流電源?？梢允褂?14 圈電位器調節環路增益、電流限制、輸入增益和偏移。偏置調節電位器也可作為板載輸入信號用于測試目的。
? 四象限再生運行
? DIP 開關可選模式
? DIP 開關可配置環路調諧
? 可選擇的抑制邏輯
? 可調電流限制
? 高開關頻率
? 差分輸入命令
? 數字故障輸出監視器
? 板載測試電位器
? 偏置調節電位器
? 可調輸入增益
? 驅動器狀態 LED
? 電流監控器輸出
? 限位開關的方向抑制輸入

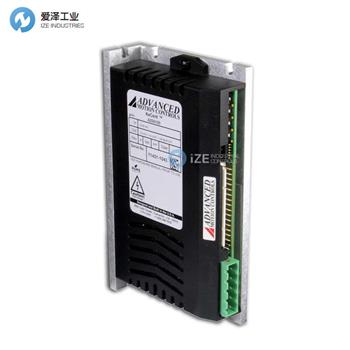

The A12A100 PWM servo drive is designed to drive brush type DC motors at a high switching frequency. A single red/green LED indicates operating status. The drive is fully protected against over-voltage, undervoltage, over-current, over-heating and short-circuits across motor, ground and power leads. Furthermore, the drive can interface with digital controllers or be used stand-alone, and requires only a single unregulated DC power supply. Loop gain, current limit, input gain and offset can be adjusted using 14-turn potentiometers. The offset adjusting potentiometer can also be used as an on-board input signal for testing purposes.
? Four Quadrant Regenerative Operation
? DIP Switch Selectable Modes
? DIP Switch Configurable Loop Tuning
? Selectable Inhibit Logic
? Adjustable Current Limits
? High Switching Frequency
? Differential Input Command
? Digital Fault Output Monitor
? On-Board Test Potentiometer
? Offset Adjustment Potentiometer
? Adjustable Input Gain
? Drive Status LED
? Current Monitor Output
? Directional Inhibit Inputs for Limit Switches

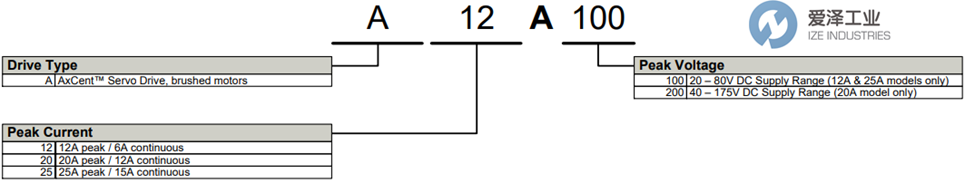

ADVANCED MOTION CONTROLS伺服驅動器AxCent系列選型
ADVANCED MOTION CONTROLS伺服驅動器AxCent系列其他常用型號：
ADVANCED MOTION CONTROLS A12A100
ADVANCED MOTION CONTROLS A25A100
ADVANCED MOTION CONTROLS A20A200
ADVANCED MOTION CONTROLS A25A200
ADVANCED MOTION CONTROLS Servo Drive NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ADVANCED MOTION CONTROLS伺服驅動器A12A100的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ADVANCED MOTION CONTROLS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
ADVANCED MOTION CONTROLS伺服驅動器AxCent系列A12A100技術參數及選型
