SAUTER壓力開關DSB系列規格
Technical data | |
Power supply | |
Maximum load with gold-plated contacts1) | 400 mA, 24 V, 10 VA |
Minimum load with gold-plated contacts | 4 mA, 5 V |
Maximum load with silver-plated contacts | 10(4) A, 250 V~, 50 W, 250 V= |
Minimum load with silver-plated contacts | 100 mA, 24 V |
Parameters | |
Pressure connection | G?" male |
Ambient conditions | |
Ambient temperature | ?20…70 °C |
Construction | |
Housing | Transparent cover |
Housing material | Impact-proof thermoplastic |
Device plug | Standard plug with female cable connector for cable ? 6…10 mm |
Standards, directives | |
Type of protection2) | IP65 (EN 60529) |
Protection class | I (IEC 60730) |
Test mark3) | TüV |
PED 2014/68/EU | VdTüV pressure information sheet |
Ship-approved | Germanischer Lloyd (GL) Lloyds Register |
CE conformity according to | |
EMC Directive 2014/30/EU | EN 61000-6-1, EN 61000-6-2, |
Low-Voltage Directive 2014/35/EU | EN 60730-1, EN 60730-2-6 |
Machinery Directive 2006/42/EC (according to Appendix II, 1B) | EN ISO 12100 |
SIL-conformity as per SIL 2 | |
Standards | IEC 61508 parts 1-2 and 4-7 |
SAUTER壓力開關DSB系列產品介紹

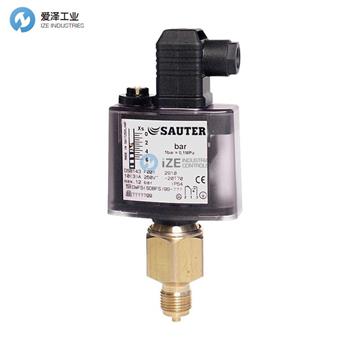

DSB, DSF: Pressure monitors and pressure switches
How energy efficiency is improved
Control and monitoring according to needs and with no auxiliary energy
Features
? For regulating and monitoring pressure in liquids, gases and vapours
? Adjustable lower switching point
? Adjustable switching difference
? Sealable
? Pressure sensor made of brass for non-aggressive media (DSB)
? Pressure sensor made of stainless steel for aggressive media (DSF)
? SIL 2 certified as per EN 61508
? Approved for marine applications (GL and LR certified)
DSB、DSF：壓力監測器和壓力開關
如何提高能源效率
根據需要進行控制和監控，無需輔助能源
特征
? 用于調節和監測液體、氣體和蒸汽中的壓力
? 可調下開關點
? 可調開關差
? 可密封
? 用于非腐蝕性介質的黃銅壓力傳感器 (DSB)
? 用于腐蝕性介質的不銹鋼壓力傳感器 (DSF)
? 根據 EN 61508 獲得 SIL 2 認證
? 獲準用于船舶應用（GL 和 LR 認證）
SAUTER壓力開關其他型號：
SAUTER DSB138F001
SAUTER DSB140F001
SAUTER DSB143F001
SAUTER DSB146F001
SAUTER DSB152F001
SAUTER DSB158F001
SAUTER DSB170F001
SAUTER Pressure Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SAUTER壓力開關DSB140F001的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for SAUTER products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
SAUTER 壓力開關DSB系列DSB140F001介紹
