POWER-GENEX定位器EPR系列技術參數
Input signal | 4~20? DC |
Input resistance | 235 ± 15 Ω |
Air supply | Max. 7.0bar (100psi) free of oil, water, and moisture |
Operating angle | 60 ~ 100° |
Pneumatic connections | Rc 1/4 or NPT 1/4 |
Electrical connections | G 1/2 or NPT 1/2 |
Protection class | Ex md IIB T6, Ex md IIC( H?) T6, IP66, Ex ia IIB T6 |
Ambient temperature | -20 ~ +70℃ |
Pressure gauge | Stainless steel |
Output characteristics | Linear |
Sensitivity | Within ± 0.5% F.S |
Hysteresis | Within 1.0% F.S |
Repeatability | Within ± 0.5% F.S |
Air consumption | 5 LPM (Sup. 1.4 kgf/?) |
Flow capacity | 80 LPM (Sup. 1.4 kgf/?) |
Material | aluminum die-cast |
Weight | 3.5 kg (with terminal box) |

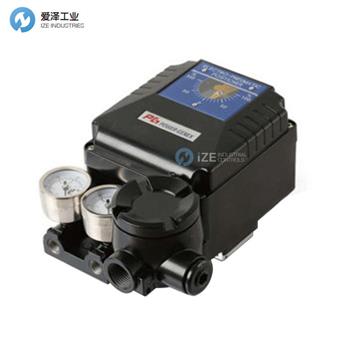

POWER-GENEX定位器EPR系列介紹
堅固的閥門控制裝置在惡劣的工作環境下提供可靠的性能和出色的耐用性
特征
- 易于維護
- 通過簡單的 SPAN 和 ZERO 調整進行精確校準
- 簡單地轉換為正作用或反作用
- 可提供 1/2 分流范圍
- 帶耐腐蝕涂層的堅固鋁制外殼
- 抗振設計
- 不銹鋼壓力表標準
- 受限先導閥包含用于小型執行器的孔板套件
Robust valve control device giving a confidence in reliable performance and outstanding durability under harsh working environments
Features
- Easy maintenance
- Precise calibration with simple SPAN and ZERO adjustments
- Simple conversion to direct acting or reverse acting
- 1/2 split range available
- Rugged aluminum housing with corrosion-resistant coating
- Vibration resistant design
- Stainless steel gauges standard
- Restricted pilot valve orifice kit for small actuators included

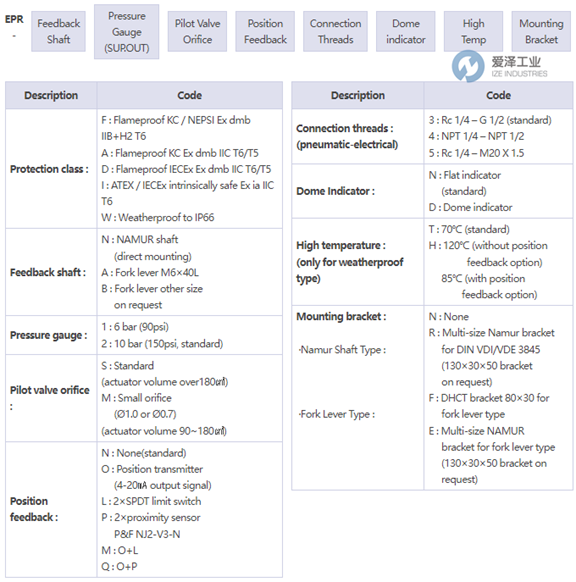

POWER-GENEX定位器EPR系列選型
POWER-GENEX定位器EPR系列其他常用型號：
POWER-GENEX EPR-IN2SO3NTR
POWER-GENEX EPR-WN2SO3NTR
POWER-GENEX EPR-WN2SN3NTR
POWER-GENEX EPR-IA1SO3NTR
POWER-GENEX POSITIONER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于POWER-GENEX定位器EPR-IN2SO3NTR的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for POWER-GENEX products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
POWER-GENEX定位器EPR系列EPR-IN2SO3NTR技術參數及選型
