GENT電源接口S4-34440-02技術參數
SPECIFICATION | |
TYPE | Interface |
STANDARDS | Certifi ed EN54:part 4:1998?EN54:part 17:2005?EN54:part 18:2005 |
MAXIMUM NUMBER PER LOOP | 100 units per loop (only 8 with fully sectored outputs) |
OVERALL DIMENSIONS | 478mm x 322mm x 128mm |
ASSEMBLED WEIGHT (APPROXIMATE) | 7Kg (excluding batteries and optional components fi tted) |
ENCLOSURE | Steel |
COLOUR | RAL7024 Graphite Grey (fi ne textured) |
STORAGE TEMPERATURE | 20oC to 70oC |
AMBIENT OPERATING TEMPERATURE | 10oC to 45oC |
RELATIVE HUMIDITY (NON CONDENSING) | Up to 95% Temperature 5oC to 45oC |
INGRESS PROTECTION (ESTIMATED) | IP31 |
OPERATING VOLTAGE | 230V 50Hz +10% -6% |
CURRENT CONSUMPTION | 0.7A |
INPUT MODES | Input can be fault monitored, voltage free contacts OR conventional detection |
ZONE CIRCUIT | Refer to the commissioning information for more details |
QUIESCENT CURRENT | 20mA per zone (default) Zone short circuit current limited to < 30mA EN54 |
OUTPUT MODES | Outputs are monitored 24V (nominal) 0.5A OR LED drive. |
MAXIMUM TOTAL OUTPUT CURRENT | 1.5A |
AUXILIARY POWER OUTPUT | 24V +/- 3V |
BATTERIES – TWO TYPES | 2 x 12V 2.1AHr (1Kg each) for S4-34440-02 |

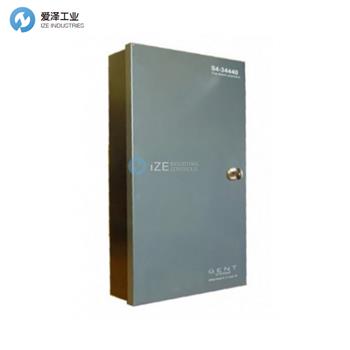

GENT電源接口S4-34440-02產品介紹
電源接口 c/w 電池（額定輸出 1.5A） 24V 電池 AUX 電源
Mains Powered Interface c/w batteries (Output rated 1.5A) 24V battery AUX Supply
GENT電源接口其他常用型號：
GENT S4-34440-12
GENT S4-34440-02
GENT Mains Powered Interface NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GENT電源接口S4-34440-02的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GENT products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
