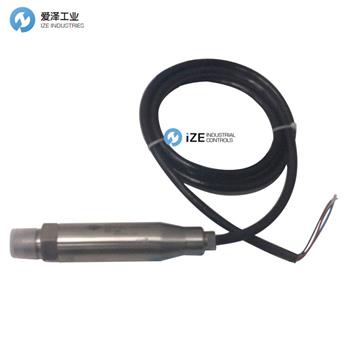

BESTACE壓力變送器661系列技術參數
Measurable medium: | gas, liquid, steam, etc. |
Standard range: | -100KPa ~ 40Mpa |
High pressure range: | 0 ~ 300MPa |
Standard accuracy: | 0.25% FS FS-full scale |
Power supply: | 24VDC |
Output: | standard 4 ~ 20mA, optional digital output |
Overload: | 1.5 times full scale |
Working temperature: | -20 ~ 85 °C, with radiator can reach 150 °C |
Temperature drift: | less than 0.2% FS |
Long-term stability: | 0.2% FS / year |
Measuring diaphragm: | 316 stainless steel |
Enclosure protection: | cable type IP68, connector type IP65 |
Electrical connection: | cable type, Hosman joint type |
BESTACE壓力變送器661系列介紹
BESTACE 661系列通用型壓力變送器，采用新壓阻式原理，通過硅微機械加工技術制造而成，介質壓力作用在不銹鋼隔離膜片，通過硅油傳遞到敏感芯片，從而精確測量介質的壓力。661系列通用型壓力變送器，適用于各種場合全天候環境及各種腐蝕性液體、氣體、蒸汽壓力的測量與控制。產品整體穩定性好，可選帶顯示、數字輸出、降溫套件等選項，最大程度的滿足不同場合的壓力測控需求。
BESTACE 661 series universal pressure transmitter adopts the latest piezo resistive principle and is manufactured by silicon micromachining technology. The medium pressure acts on the stainless steel isolating diaphragm and is transmitted to the sensitive chip through silicone oil to accurately measure the pressure of the medium. . 661 series universal pressure transmitter is suitable for all-weather environment and measurement and control of various corrosive liquids, gases and vapor pressures. The overall stability of the product is good, and the options such as display, digital output and cooling kit can be selected to meet the pressure measurement and control requirements of different occasions to the greatest extent.
BESTACE壓力變送器661系列其他常用型號：
BESTACE 661-A1-B4-C2-D1-E4-F2
BESTACE 661-A1-B10-C1-D3-E1-F2
BESTACE 661-A2-B5-C4-D1-E1-F1
BESTACE 661-A1-B2-C1-D1-E1-F2
BESTACE 661-A1-B1-C1-D1-E1-F2
BESTACE Pressure Transmitters NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BESTACE壓力變送器661-A1-B10-C1-D3-E1-F2的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BESTACE products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
BESTACE壓力變送器661系列661-A1-B10-C1-D3-E1-F2技術參數及介紹
