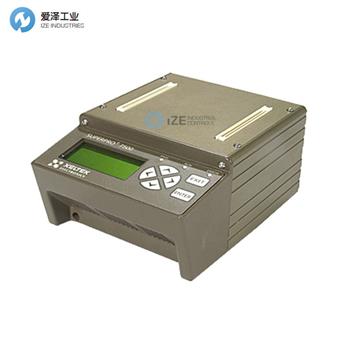

XELTEK編程器SP7500N產品介紹

高級通用 LAN 編程器

設計的算法可同時對多達 4 個芯片進行編程

支持市場上大多數設備內存

對高達 64 GB 的 eMMC 設備進行編程

支持大多數封裝類型，包括 WLCSP

可在 PC 托管、獨立和 LAN 模式下運行

可定制設備算法開發

Advanced Universal LAN Programmer

Algorithms engineered to program up to 4 chips simultaneously

Supports most device memories on the market

Programs eMMC devices up to 64 GB

Supports most package types including WLCSP

Operates in PC hosted, stand-alone, and LAN modes

Customized device algorithm development available

超快速編程速度 SuperPro 7500N 編程器采用超高速 MCU 芯片，不僅產生可靠的編程算法，而且還提高了編程速度。 利用 ARM11 32 位 MCU 與內部 Linux 操作系統相結合，使它們成為多功能的編程器。 與 Superpro 6100 相比，Superpro 7500N 的編程速度提高了 30%，eMMC 器件的編程速度提高了 8-10 倍。

定制 4 位適配器 SuperPro 7500N 一次最多可對 4 個芯片進行編程。 許多 EEPROM / Flash / MCU / eMMC 芯片還支持 2-Gang 或 4-Gang 模式，吞吐量提高近四倍！

LAN 模式 大多數生產編程應用都需要遠程操作編程器。 在 SuperPro 7500N 上，. 使用 LAN 端口，編程器可以連接到本地網絡，并可以通過網絡上的任何計算機進行遠程控制。 在這種情況下，控制 SuperPro 7500N 的 PC 充當服務器，SuperPro 7500N 充當客戶端。

工程文件 工程文件存放編程前的準備工作。 用戶還可以恢復和保存工作環境。 工程文件包括設備類型、緩沖區數據、操作選項設置、配置位設置和批處理命令。 項目文件可以受密碼保護，以提高未經培訓的操作員操作時的安全性和可靠性。

自動功能 自動功能將不同的功能組織成一個連續的組（擦除、空白檢查、編程、驗證和保護）。 函數按類似于批處理命令的順序執行。

生產模式 一旦芯片正確插入，編程器自動啟動擦除、空白檢查、編程和驗證的批量命令。 自動芯片檢測可節省時間并提高效率。

生產統計 日志文件可用于在退出程序之前保存操作信息。 日志文件還可用于促進質量跟蹤。

工廠模式 此模式專為工廠批量生產而設計。 為了防止操作錯誤損壞芯片以及將錯誤的數據寫入芯片，SuperPro 將工作在自動功能模式下。 管理員可以設置密碼，防止未經授權的人員訪問系統。

文件類型自動識別支持幾乎所有已知的文件格式，包括具有自動識別功能的文件格式：二進制、Intel（線性和分段）Hex、Motorola S、Tektronix（線性和分段）、JEDEC、POF 等。

序列號自動遞增 Superpro 7500N 可以自動生成電子序列號。 該功能是通過在操作選項中設置自動增量來實現的。 自動增量允許用戶將唯一的序列號添加到設備中。 每次編程成功后，軟件會自動按指定的增量方式更改數值。

知識產權保護 密碼設置在 PC 和單機模式下均可用。

Ultra Fast Programming Speed SuperPro 7500N programmers employ a very high speed MCU chip producing not only reliable programming algorithms, but also increasing programming speed. Utilization of ARM11 32bit MCU combined with an internal Linux operating system makes them the most advanced and versatile programmers in the industry. Superpro 7500N offers 30% higher programming speed and 8-10 times faster programming speed for eMMC devices as compared to Superpro 6100.

Customized 4 Gang Adapters SuperPro 7500N can be used to program up to 4 chips at a time. Many EEPROM / Flash / MCU / eMMC chips are also supported in 2-Gang or 4-Gang mode to increase throughput by nearly four times!

LAN Mode Most production programming applications need the programmer to be operated remotely. On SuperPro 7500N, . Using the LAN port, programmers can be connected to a local network and can be remotely controlled via any computer on the network. In this case, the PC which controls the SuperPro 7500N acts as a server and SuperPro 7500N acts as a client.

Project Files The project file stores preparations before programming. Users could also restore and save work environment. The project file includes device type, buffer data, operation option settings, configuration bit settings and batch commands. Project files may be password protected to increase security and reliability when operated by untrained operators.

Auto Function The Auto function organizes different functions into a sequential group (erase, blank check, program, verify and protect). Functions are executed in sequential order similar to a batch command.

Production Mode Once a chip is inserted correctly, the programmer automatically starts batch command of erase, blank check, program and verify. Auto chip detection saves time and increases efficiency.

Production Statistics A log file could be used to save operation information before exiting the program. Log files can also be used to facilitate quality tracking.

Factory Mode This mode is designed for factory volume production. To prevent operation errors from destroying chips and wrong data written to the chip, SuperPro will operate in the Auto function mode. The administrator can set a password to prevent unauthorized access to the system.

Auto Recognition of File Types We support almost all kinds of known file formats including file formats with automatic recognition functions: Binary, Intel (linear & segmented) Hex, Motorola S, Tektronix (linear & segmented), JEDEC, POF, etc.

Auto Increment of Serial Numbers Auto-generation of electronic serial numbers is available on Superpro 7500N. This feature is implemented by setting Auto Increment in Operation Option. Auto Increment allows users to add unique serial number into the device. After each successful programming, the software automatically changes the value by the specified increment mode.

Intellectual Property Protection Password settings available in both PC and stand-alone mode.
