SENECA網關Z-PASS2-RT-4G技術參數
| TECHNICAL DATA | |
| Power supply | 11..40 Vdc |
| Max. power consumption | 11 W |
| Max insulation | 1.5 kVac |
| LED status indicators | Power supply |
| Protection class | IP20 |
| Connections | 3.5 mm pitch removable terminal block, cable cross-section 1.5 mm2 |
| Flash Memory (data) | ≥4 GB |
| RAM | 512 MB |
| Slot for SD card | Yes Max 32GB |
| I/O channels | Nr. 6DI/DO configurable |
| Operating temperature | -25..+65 °C |
| Dimensions (lxhxp) | 35 x 102.5 111 mm |
| Weight | 240 g approx. |
| Case | PA6 glass fiber reinforced |
| Installation | For 35 mm DIN rail IEC EN 60715 |
| Certifications | CE, UKCA |

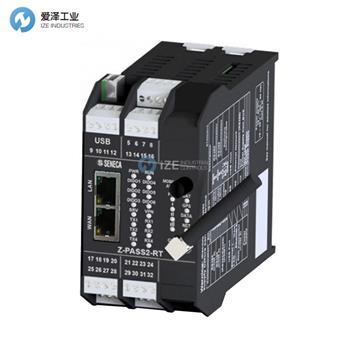

SENECA網關Z-PASS2-RT產品介紹
Z-PASS2-RT 是一款高度可靠且安全的設備,旨在處理幾乎無限數量的客戶端節點。該設備具有 2 個模擬輸入和 6 個可配置的通用數字 (DI/DO) 通道,提供無與倫比的多功能性。Z-PASS2-RT 具有 2 個快速以太網端口(1 個 LAN 端口、1 個 WAN 端口)、3 個串行端口和 1 個 USB 主機 2.0 端口,可提供廣泛的連接選項。此外,Z-PASS2-RT 設備還配備集成的 4G/LTE 調制解調器,可實現更加強大和可靠的連接。Z-PASS2-RT 支持多種協議,可確保與第三方系統完全集成并實現實時通信。
Z-PASS2-RT is a state-of-the-art, highly reliable, and secure device designed to handle a virtually unlimited number of client nodes. This device features 2 analog inputs and 6 configurable general-purpose digital (DI/DO) channels, providing unparalleled versatility. With 2 Fast Ethernet ports (1 LAN port, 1 WAN port), 3 serial ports, and 1 USB host 2.0 port, Z-PASS2-RT offers a wide range of connectivity options. In addition, the Z-PASS2-RT device comes with an integrated 4G/LTE modem for even more robust and reliable connectivity. Z-PASS2-RT supports a wide range of protocols ensuring full integration with third-party systems and enabling real-time communication via.
SENECA網關其他常用型號:
SENECA Z-PASS2-RT-4G-S
SENECA Z-PASS2-RT-4G-E
SENECA Z-PASS2-RT
