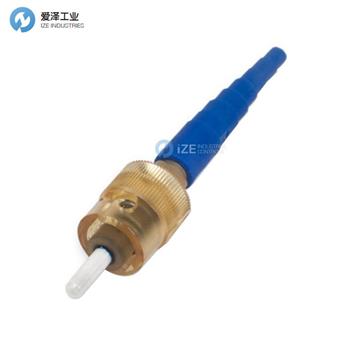

UNICAMST連接器95-200-51技術參數
General Specifications | |
Product Type | Field-Installable Connectors |
Product Category | Core Product / FastShip |
Fiber Category | Single-mode (OS2) |
Product Type | Field-Installable Connectors |
Corning Logo | Yes |
Keyed (security) | No |
Technology | No-Epoxy/No-Polish |
Standards | |
RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
Environmental Conditions | |
Temperature Range, Operation | -40 °C to 75 °C (-40 °F to 167 °F ) |
Design - Connector | |
Connector Type | ST? compatible |
Housing Color | Amber |
Boot Color | Blue |
Mechanical Specifications - Connector | |
Nominal Fiber Outer Diameter | 125 μm |
Tensile Strength Jacketed Cable | 44 N (9.89 lbf) |
Durability | ≤ 0.2 dB change, 500 rematings, FOTP-21 |
Tensile Strength 900 μm Cable | 4.9 N (1.1 lb) change ≤ 0.2 dB, FOTP-6 |
Optical Specifications - Connector | |
Polish | UPC |
Insertion Loss, Max. | 0.5 dB |
Reflectance | < -55 dB |
UNICAMST連接器95-200-51介紹
工作溫度范圍廣（-40°C 至 +75°C），實用性和靈活性
工廠拋光端面，一致的光學性能
快速終止且無需耗材，安裝成本低
最小插入損耗，最佳光學性能
Broad operating temperature range (-40°C to +75°C), Utility and flexibility
Factory-polished end face, Consistent optical performance
Fast termination and no consumables, Low installation cost
Minimum insertion loss, Optimum optical performance
UNICAMST連接器其他常用型號：
UNICAMST 95-200-51
UNICAMST 95-000-50
UNICAMST 95-000-50-Z
UNICAMST 95-000-51
UNICAMST 95-000-51-Z
UNICAMST 95-050-50
UNICAMST 95-050-50-Z
UNICAMST 95-050-51
UNICAMST 95-050-51-X
UNICAMST 95-050-51-XZ
UNICAMST 95-050-51-Z
UNICAMST Connector NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于UNICAMST連接器95-200-51的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any quesQ3Ton for UNICAMST products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
