ETHERWAN以太網交換機EL900系列技術參數
Specifications | |
Technology | |
Standards | ? IEEE 802.3 10BASE-T |
Forward and Filtering Rate | ? 14,880pps for 10Mbps |
Packet Buffer Memory | ? 128K bits |
Processing Type | ? Store-and-Forward |
Power | |
Input | ? 10-48VDC (DC Terminal Block) |
Power Consumption | ? 4.32W MAX. 0.36A@12VDC, 0.09A@48VDC |
Protection | ? Overload current protection |
Mechanical | |
Casing | ? Aluminum Case |
Dimensions | ? 50 x 110 x 135mm (W x D x H) |
Weight | ? 0.8Kg (1.76lbs.) |
Installation | ? DIN-Rail (Top hat type 35mm), Panel, or Rack mounting |
Interface | |
Ethernet Port | ? 10/100BASE-TX: 1 port |
LED Indicators | ? Per Unit: Power, LFPT |
Relay Contact | ? Relay contact rating with current 0.6A/30VDC |
Environment | |
Operating Temperature | ? -40 to 75°C (-40 to 167°F) |
Storage Temperature | ? -40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity | ? 5% to 95% (non-condensing) |
ETHERWAN以太網交換機EL900系列產品介紹
Designed and certified for Class I, Division 2 electrical equipment
Link Fault Pass Through (LFPT)
Alarms for power and link failure
Overview
The EL900 Series provides media conversion between 10/100BASE-T and 100BASE-SX-LX Fiber. Built specifically for mission-critical applications in harsh environments, the EL900's hardened design features high shock & vibration resistance, electrical noise immunity, wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. With triple power inputs, link down alarming, Link-Fault-Pass-Through and a wide range of fiber connectivity options, the EL900 is the ideal media converter for harsh environments.
為 Class I, Division 2 電氣設備設計和認證
鏈路故障直通 (LFPT)
電源和鏈路故障警報
概述
EL900 系列提供 10/100BASE-T 和 100BASE-SX-LX 光纖之間的媒體轉換。EL900 的強化設計專為惡劣環境中的關鍵任務應用而打造，具有高抗沖擊和抗振性、抗電噪聲能力、-40°C 至 75°C 的寬工作溫度范圍以及堅固耐用的鋁制外殼。EL900 具有三路電源輸入、鏈路斷開報警、鏈路故障直通和多種光纖連接選項，是適用于惡劣環境的理想介質轉換器。

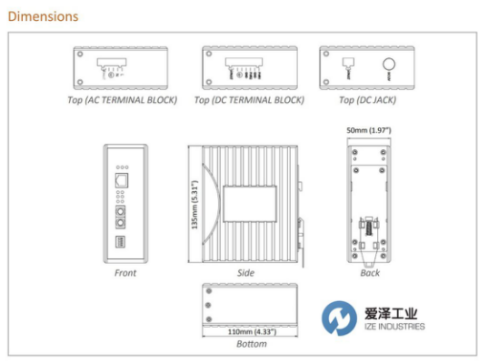

ETHERWAN以太網交換機EL900系列尺寸圖
ETHERWAN以太網交換機EL900系列其他型號：
ETHERWAN EL900-A-C-1-A
ETHERWAN EL900-A-B-1-A
ETHERWAN EL900-A-Y-1-P
