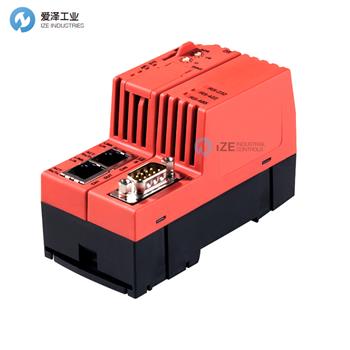

HILSCHER網關NT100-DP-RS技術參數
Product | |
Product name | NT 100-DP-RS |
Part number | 1718.1 |
Brief description | Gateway PROFIBUS DP to RS-232/422/485 |
Communication controller | |
netX | netX 100 |
Integrated Memory | |
RAM | 8 MB SDRAM |
FLASH | 4 MB serial Flash |
Application memory for netSCRIPT and variables | appr. 1 MByte |
Memory card | |
Type and size | SD or MMC card, max. 2 GByte |
Power supply | |
Supply voltage | 24 V DC ± 6 V |
Maximum Current at 24 V (typically) | 130 mA |
Typical power consumption | 3,2 W |
Connector | Mini-COMBICON, 2-pin |
Reverse voltage protection | yes |
Requirement to the power supply | For UL compliant usage: Device shall be supplied by an isolated voltage source |
Communication interface X2 | |
Communication standard | PROFIBUS-DP |
Interface type | RS-485, optically isolated |
Connector | D-Sub, socket, 9-pin |
Communication interface X3 | |
Communication standard | Serial Interface |
Interface type | RS-232, RS-422, RS-485 |
Connector | D-Sub, plug, 9-pin |
Diagnostic interface | |
Type | USB |
Connector | Mini-USB, 5-pin |
Displays | |
LED displays | SYS System status |
Operating elements | |
Network address | Network address, 2 rotary switches |
Permitted ambient conditions | |
Ambient temperature (operation) | 0 … + 60 °C |
Humidity | no condensation permitted |
Altitude | 0 … 2000 m |
Pollution degree | For UL-compliant usage: Device must be used in a pollution degree 2 environment |
Device | |
Dimensions (L x W x H) | 100 x 52 x 70 mm (without connector) |
Weight | appr. 150 g |
Degree of protection | IP 20 |
Mounting | on DIN rail EN 60715 |
Configuration | |
Configuration software | SYCON.net |
Conformity | |
RoHS | Yes |
UL certification | |
UL | The device is UL 508 certified |
UL file | UL-File No E334100 |
Conformance with EMC directives | |
CE sign | Yes |
UKCA sign | Yes |
Emission | CISPR 11 Class A |
Immunity | EN 61131-2 / BS EN 61131-2 |
HILSCHER網關NT100-DP-RS產品介紹
PROFIBUS-DP 至 Modbus RTU、3964R 或串行（ASCII/可編程）的網關
適用于高要求轉換的高端網關
? 在 PROFIBUS 中集成支持 Modbus RTU 或支持 3964R 的設備或串行設備，反之亦然
? ASCII /串行發送/接收字符序列可配置
? 主站最多可容納 125 個 PROFIBUS 從站
? 通過存儲卡加載，幾秒鐘內即可更換設備
? 可加載固件，可靈活使用進一步轉換
? 通過 USB 提供診斷和配置接口
Gateway PROFIBUS-DP to Modbus RTU, 3964R, or Serial (ASCII / programmable)
High-end gateway for demanding conversions
? Integrates Modbus RTU-capable or 3964R-capable devices or serial devices in PROFIBUS, and vice versa
? ASCII / serial send/receive character sequence freely configurable
? Master for up to 125 PROFIBUS Slaves
? Device exchange in seconds by loading via memory card
? Loadable firmware for the flexible use of further conversions
? With diagnosis and configuration interface via USB
HILSCHER網關NT100系列其他常用型號：
HILSCHER NT100-RE-EN
HILSCHER NT100-RE-CC
HILSCHER NT100-RE-CO
HILSCHER NT100-RE-DP
HILSCHER NT100-RE-DN
HILSCHER NT100-RE-RS
HILSCHER NT100-DP-CC
HILSCHER NT100-DP-CO
HILSCHER NT100-DP-DN
HILSCHER NT100-DP-DP
HILSCHER NT100-DP-RS
HILSCHER NT100-CO-CC
HILSCHER NT100-CO-CO
HILSCHER NT100-DP-RS
HILSCHER GATEWAY NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HILSCHER網關NT100-DP-RS的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HILSCHER products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
HILSCHER網關NT100-DP-RS技術參數介紹
