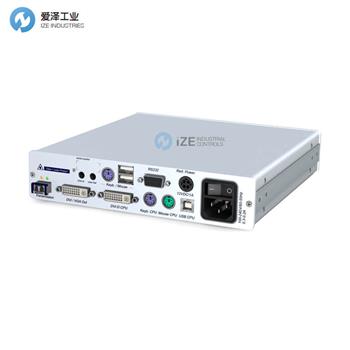

GUNTERMANN&DRUNCK擴展模塊DVI-Vision-Fiber(M)-AR-CPU技術參數
General | |
Product group | KVM extenders |
Transmission | |
Number of transmission channels | 1 |
Redundant transmission channels | no redundant KVM transmission |
Range | 100 m (62.5/125μm) |
Laser class | Class 1 |
Type of interface | LC-Duplex |
Wavelength | 850 nm |
KVM matrix system component | Computer module |
Medium | Fiber MM |
Data rate | 2.5 Gbit/s |
Housing | |
Material | anodised aluminium |
Width | ca. 210 mm |
Height | ca. 44 mm |
Depth | ca. 210 mm |
IP protection class | IP20 |
Weight | ca. 1.30 kg |
Operating conditions | |
Operating temperature | 5 °C to 45 °C |
Operating air humidity | 20 % to 80 %, non-condensing |
Area of application | Interior |
Maximum operating altitude | 3048m above sea level |
Storage temperature | -20 °C to 60 °C |
Storage air humidity | 15 % to 85 %, non-condensing |
MTBF | 200000 h at 25°C |
Power supply 1 | |
Input voltage | 100-240 VAC |
Input frequency | 60-50 Hz |
Current consumption | 0.3-0.2 A |
Power consumption max. | 12 W |
Heat output max. | 9 W |
Power supply 2 | |
Input voltage | 12 VDC |
Current consumption | 1 A |
Power consumption max. | 10.3 W |
Heat output max. | 7.3 W |
GUNTERMANN&DRUNCK擴展模塊DVI-Vision系列介紹
DVI-Vision 系列擴展器可在每個視頻通道上將壓縮且像素好的分辨率擴展至 60 Hz 時高達 1920 × 1200。
憑借其網絡端口、Web 界面和監控功能，擴展器為關鍵任務應用程序提供了重要的功能。
擴展系統由計算機模塊 (CPU) 和控制臺模塊 (CON) 組成，可遠距離操作計算機。
Extenders of the DVI-Vision series extend compressed and pixel-perfect resolutions up to 1920 × 1200 at 60 Hz over every video channel.
With their network port, web interface and monitoring functions, the extenders offer important features for mission-critical applications.
An extender system consists of a computer module (CPU) and a console module (CON) and lets you operate a computer from a great distance.
