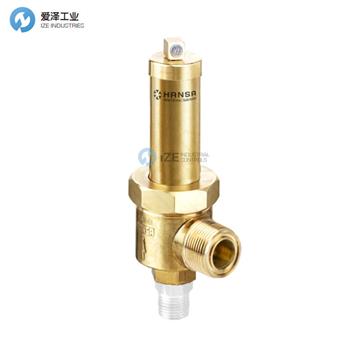

HANSA安全閥üSV 28,0 BAR 12,5 MM G1/2 2446280050技術參數
Design type | direct acting spring loaded valves |
Opening characteristic | Standard safety valve |
Type designation | üSV and HD-üSV |
Valve size | DN 15 mm |
threat | A G 1/2" |
outlet | B G 1 |
overall length | H 131 mm |
Key (SW) | SW 12.5 mm |
Weight pc | 1,070 kg |
Licensing | Type tested safety valve (Modul B) |
Conformity assessment | Category IV - Modul B+F (2014/68 EU) |
Applied standards and | DIN EN 378, AD 2000-Information Sheet, VdTüV-Information Sheet, |
technical specification | DIN EN ISO 4126-1, Guideline 2014/68 EU |
Suitable for | Fluids in group 1 (please consult manufacturer) and group 2 (please consult manufacturer) also R744 for all common refrigerants like HFC and CFC except NH3 refrigerant As "PRO" also for R290 available |
Permissible temperature range | -30°C to +120°C |
Nominal Opening Pressure | available from 10 to 45 bar |
Opening Pressure Diff | ≤ 10%, min. 0,1bar |
Threaded connection | G 1/2" |
Flow diameter | 12,5mm |
Housing material | brass CW617N (2.402 or CuZn40Pb2) |
Output | G 1" free blow-off |
Reduced discharge coefficient | 0.49 |
Shipped with: | 1 copper O-Ring seal 2776830050 13,2X18,5X1,5 certificate with control number attached to each valve |
Remarks: | Each valve tested and controled under supervision of DEKRA quality control |
HANSA安全閥üSV系列其他常用型號：
HANSA üSV 12.0 BAR 12.5 MM G1/2'' 2446120050PRO
HANSA üSV 10.0 BAR 12.5 MM G1/2'' 2446100050
HANSA üSV 10.0 BAR 12.5 MM G1/2'' 2446100050PRO
HANSA üSV 11.0 BAR 12.5 MM G1/2'' 2446110050
HANSA üSV 11.0 BAR 12.5 MM G1/2'' 2446110050PRO
HANSA üSV 12.0 BAR 12.5 MM G1/2'' 2446120050
HANSA üSV 28.0 BAR 12.5 MM G1/2'' 2446280050
HANSA üSV 27.2 BAR 12.5 MM G1/2'' 2446272050
HANSA üSV 29.0 BAR 12.5 MM G1/2'' 2446290050
HANSA üSV 30.0 BAR 12.5 MM G1/2'' 2446300050
HANSA üSV 31.0 BAR 12.5 MM G1/2'' 2446310050
HANSA VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HANSA安全閥üSV 28,0 BAR 12,5 MM G1/2 2446280050的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HANSA products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
