PAULY光學傳感器3150系列技術參數
Technical Characteristics: | |
Housing objective | PVC |
Housing optical elements | brass, nickel-plated |
Weight | approx. 2x190g incl. 4m cable each IP65 |
Protection mode | IP65 |
Connection | |
Transmitter | 2-core cable (4m), shielded |
Receiver | 3-core cable (4m), shielded |
Receiver element | Si phototransistor |
Transmitting light | GaAs 880nm, invisible |
Photov. element. here. T/R | ?=5/5mm |
Light beam diameter | approx. ?900mm/10m |
Ambient temperature | -25...+60°C |
Range | in clear air without diaphragms: |
15m with PP2..00-2 | |
25m with PP2..10-2 |

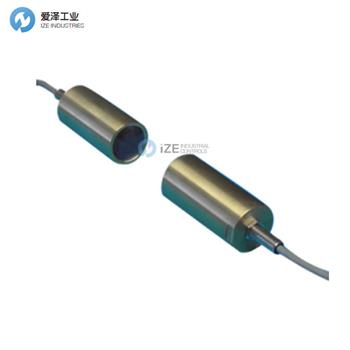

PAULY光學傳感器3150系列產品介紹
3150EX01 接收器-光學元件
PVC
IP65
直徑 35mm x 長度 75mm
無去耦元件（最大電纜長度 4m）
帶紅色絕緣管屏蔽
連接電纜，屏蔽，預裝配 4m
3150EX01 Receiver-Optic
PVC
IP65
Diameter 35mm x Length 75mm
Without decoupling element (max. cable length 4m)
Shielded with red insulating tube
Connecting cable, shielded, pre-assembled 4m
3150SX01發射器-光學元件
PVC
IP65
直徑 35mm X 長度 75mm
無發射器-驅動器（最大電纜長度 6m）
帶綠色絕緣管屏蔽
連接電纜，屏蔽，預裝配，4m
3150SX01 Transmitter-Optic
PVC
IP65
Diameter 35mm X Length 75mm
Without Transmitter-driver (max. cable length 6m)
Shielded with green insulating tube
Connecting cable,shielded, pre-assembled, 4m
PAULY光學傳感器其他常用型號：
PAULY 3150SX01
PAULY 3150EX01
PAULY 3153
PAULY 3133
PAULY 3174
PAULY 3181
PAULY 3183
PAULY 3190
PAULY Optic Head NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PAULY光學傳感器3150EX01的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for PAULY products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
PAULY光學傳感器3150系列3150EX01技術參數介紹
