ENTEGRIS過濾器WG3NS2RR4規格
SPECIFICATIONS | |
Materials | |
Filter membrane | Nickel |
Housing, end cap | Low sulfur 316L stainless steel |
Initial downstream cleanliness | ≤0.03 particles/liter (≤1 particle/ft3 ) ≥0.01 μm |
Removal rating | ≥0.0015 μm |
Particle retention | Greater than 99.9999999% (9 LRV) removal of all particles at 60 slm (Mini) and 120 slm (Mini XL): referenced at the most penetrating particle size |
Surface finish interior | ≤ 5 μin Ra |
Helium leak rating | |
Tested | 9 × 10-10 Pa m3 /sec (9 × 10-9 atm cc/sec) |
Maximum conditions | |
Maximum operating pressure: | 16.2 MPa (162 bar, 2346 psid) at 20°C (68°F) |
Maximum forward/reverse differential pressure: | 3.3 MPa (33 bar, 485 psid) @RT |
Maximum design temperature: | Inert gases: 400°C (725°F) |
Flow rating | Refer to performance data |
ENTEGRIS過濾器WG3NS2RR4介紹
Wafergard? III鎳過濾器是目前最干凈、效率最高的全金屬過濾器。其專利的鎳濾膜提供優越的耐腐蝕性，并與惰性和反應性氣體具有極佳的兼容性。
先進的外殼組件通過最小化焊接區域來消除氣體釋放。全金屬結構非常適合高溫和動態壓力應用。其緊湊的尺寸和靈活的連接件選擇提供了最佳的設計效率，并將工程成本降至最低。

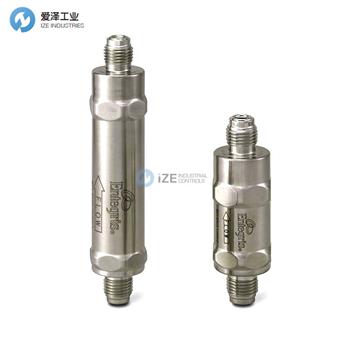

Wafergard? III nickel filters are the cleanest, most efficient allmetal filters available. The patented nickel filter membrane
offers superior corrosion resistance and excellent compatibility with inert and reactive gases.
A state-of-the-art housing assembly eliminates outgassing by minimizing weld area. The all-metal construction is ideal for high-temperature and dynamic-pressure applications. Its compact size and flexible choice of fittings provide ultimate design efficiency and minimize engineering costs.
ENTEGRIS過濾器其他常用型號：
ENTEGRIS WG3NS1RR2
ENTEGRIS WG3NS2RR2
ENTEGRIS WG3NS2RR4
ENTEGRIS filter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ENTEGRIS過濾器WG3NS2RR4的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ENTEGRIS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
ENTEGRIS過濾器WG3NS2RR4技術參數
