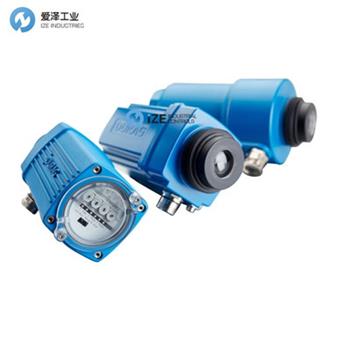

DURAG火焰檢測器D-LX 201選型介紹
Operational mode | Intermittent operation and continuous operation, 72-hour operation without permanent supervision |
Safety | Self-monitoring and fail-safe |
Electrical connection | 24 VDC, 5 W, PELV |
Flame relay, Status relay | 1x NO contact, 24 VDC, 0.5 A each |
Flame Failure Detection Time (FFDT) | 1, 2, 3, 5 s |
(separate setting per range) | |
Analogue output | 0/4...20 mA, 750 Ohm max. |
Optional real-time information | Flame stability analysis |
Local display | Flame intensity, Flame ON/OFF, Thresholds, |
Range selection | |
Spectral ranges | UV, IR |
Ranges | 2 |
Threshold switches | Flame intensity and flicker frequency |
Viewing angle | 6° |
Communication | LED, Modbus RTU, IrDA |
Ambient temperature range | -40...+85°C |
Sighting tube connection | G 1?" or 1?" NPT(F) |
Purge air connection | G ?" or ?" NPT(F) |
Protection class | IP66/68 |
IP65 for version /MP3 | |
Dimensions | 85 x 85 mm, length approx. 250 mm (housing P2) |
100 x 100 mm, length approx. 260 mm (housing M5) | |
Weight (without cable) | approx. 0.9 kg (housing P2) |
approx. 1.3 kg (housing M5) |
DURAG火焰檢測器D-LX 201/721
愛澤工業(IZE INDUSTRIES)特價經銷、常用DURAG火焰檢測器型號：
DURAG D-LX 100
DURAG D-LX 110
DURAG D-LX 200
DURAG D-LX 201
DURAG D-LX 710
DURAG D-LX 720
DURAG D-LX 721
DURAG FLAME MONITORS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DURAG火焰檢測器D-LX 201的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for DURAG products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
DURAG火焰檢測器D-LX 201選型及介紹
