KROM SCHRODER燃燒控制器IFD244系列技術參數
Technical data | |
Mains voltage for grounded and ungrounded mains: | 120 V AC, -15/+10%, 50/60 Hz, |
Safety time on start-up tSA: | 3, 5 or 10 s. |
Safety time during operation tSB: | < 1 s, < 2 s. |
Ignition time tZ: | approx. 2, 3 or 6 s. |
Power consumption: | IFD 244: approx. 9 VA, |
Valve connections: | 1 |
Output voltage for valves and ignition transformer = mains voltage. | |
Contact rating: | |
Ignition output: | max. 2 A, cos ? = 0.2, |
Valve output: | max. 1 A, cos ? = 1, |
Signalling contacts: | max. 2 A, 253 V AC, |
Max. number of operating cycles: | 250000 |
Max. number of operating cycles: | Reset button: 1000, |
Input current signal inputs: | Signal “1”: typ. 2 mA. |
Flame control: | |
Sensor voltage: | approx. 230 V AC, |
Sensor current: | > 2 μA, |
Max. sensor current: | ionisation < 25 μA. |
Length of sensor cable: | max. 75 m. |
Ignition cable: | IFD 244: max. 5 m, recommended < 1 m (with TZI/TGI), |
Ignition current | 25 mA, |
Spark gap: | 2 mm, max. 5 mm. |
Fuse in unit: | F1: T 3.15A H 250 V pursuant to IEC 127-2/5. |
Ambient temperature: | -20 to +60°C (-4 to +140°F), |
Relative humidity: | no condensation permitted. |
Enclosure: | IP 54 pursuant to IEC 529. |
Overvoltage category | III pursuant to EN 60730. |
Cable gland: | M16. |
Installation position: | any. |
Weight: | IFD 244: 610 g, |

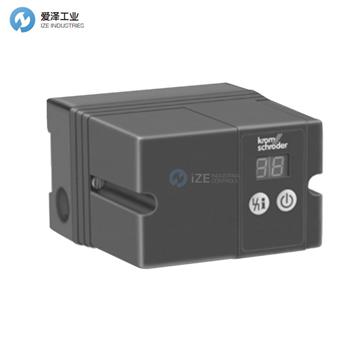

KROM SCHRODER燃燒控制器IFD244系列介紹
點燃和監控燃?xì)馊紵?，?shí)現連續運行，顯示屏指示程序狀態和火焰信號強度，IP 54，歐盟認證，F(xiàn)M 和 CSA 批準。
特點與優勢：
? 200 系列電離控制
? 熄火時重新啟動
? 啟動安全時間：10秒
? 運行時安全時間：1秒
? 電源電壓：120 V AC，50/60 Hz
Ignites and monitors gas burners, for continuous operation, display for indicating program status and flame signal intensity, IP 54, EU certified, FM and CSA approved.
Features & Benefits:
? Series 200 Ionization control
? Restart in the event of flame failure
? Safety time on start-up: 10 s
? Safety time during operation: 1 s
? Mains voltage: 120 V AC, 50/60 Hz

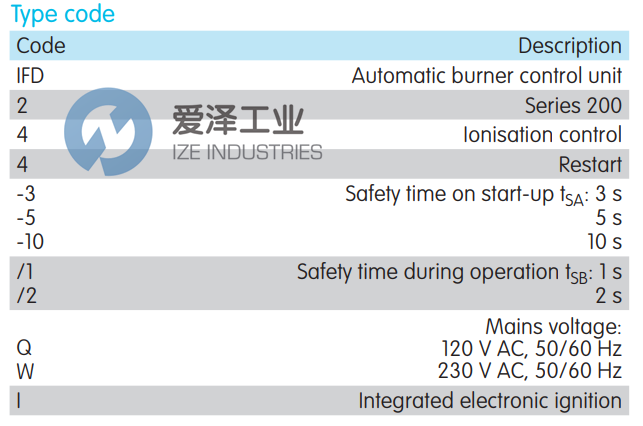

KROM SCHRODER燃燒控制器IFD244系列選型
KROM SCHRODER燃燒控制器IFD244系列其他常用型號：
KROM SCHRODER IFD244-3/1WZ
KROM SCHRODER IFD244-5/1WI
KROM SCHRODER IFD244-5/1W
KROM SCHRODER IFD244-5/2W
KROM SCHRODER IFD244-5/2WI
KROM SCHRODER IFD244-3/1WI
KROM SCHRODER IFD244-3/2W
KROM SCHRODER IFD244-3/2WI
KROM SCHRODER IFD244-10/1W
KROM SCHRODER IFD244-10/1WI
KROM SCHRODER IFD244-3/1Q
KROM SCHRODER IFD244-3/2QI
KROM SCHRODER IFD244-5/1Q
KROM SCHRODER IFD244-5/2QI
KROM SCHRODER IFD244-10/1Q
