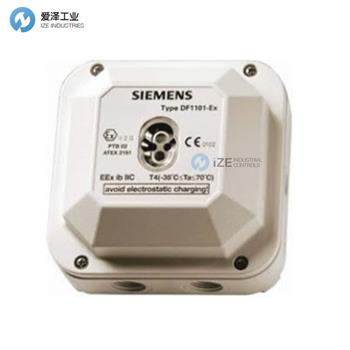

SIEMENS火焰探測器DF1101-EX技術規格
Technical data DF1101-Ex | |
Operating voltage | DC 16…28 V |
Operating current (quiescent) | 0.5 mA |
Ext. alarm indicator (AI) | 2 |
Connection factor KMK | 6 |
Connection terminals | 0.2…2.5 mm2 |
Operating temperature | -35…+70°C |
Storage temperature | -40…+75 °C |
Air humidity | ≤95 % rel. (no significant moisture condensation on the viewing window) |
Color | ~RAL 9010 pure white |
Protection category (IEC/EN 60529) | IP67 |
Ex classification | II 2 G Ex ib IIC T4 Gb (-35 °C ≤Ta ≤70 °C) |
Standards |
|
Approvals |
|
Compatibility |
|
SIEMENS火焰探測器DF1101-EX產品介紹
●適用于室內和室外應用
●3傳感器處理
–各種波長的檢測
–微處理器控制的信號處理
●選擇性評估閃爍序列
●應用算法的選擇
●專利的模糊邏輯和小波分析相結合，具有出色的抗誤報能力
●最大抗力
–電磁干擾
–陽光和熱輻射
–濕氣和腐蝕
●通過輸入/輸出模塊DC1192連接到集體/ SynoLINE600，交互式或AnalogPLUS / SynoLOOP火災探測系統
●通過應答器FDCIO223連接到尋址的FDnet / C-NET火災探測系統
● For indoor and outdoor applications
● 3-sensor processing
– Detection at various wavelengths
– Microprocessor-controlled signal processing
● Selective evaluation of flickering sequence
● Choice of application algorithms
● Excellent false alarm immunity thanks to a combination of patented fuzzy logic and wavelet analysis
● Maximum resistance to
– electromagnetic interference
– sunlight and thermal radiation
– moisture and corrosion
● Connection to the collective/SynoLINE600, interactive or AnalogPLUS/SynoLOOP fire detection system via input/output module DC1192
● Connection to the addressed FDnet/C-NET fire detection system via transponder FDCIO223
SIEMENS火焰探測器DF系列其他常用型號：
SIEMENS DF11Ex
SIEMENS DF1101-EX
SIEMENS DFB1190
