FIREYE火焰檢測器85UVF/IRF系列技術參數
Housing Material: | Engineered material - GE Valox |
Scanner Weight: 3 | 30 lbs (1.5kg) |
Temperature Rating: | -40°F/-40°C [Ta ]150°F/+65°C; -40°F/-40°C [ scanner internal temperature ] 180 °F/82°C |
Humidity: | 0% to 95% relative humidity, non-condensing |
Pollution Degree: | 2 |
Overvoltage Category: | III |
Source: | Clean, dry, cool |
Pressure: | Adequate to overcome furnace or windbox pressure |
Input Power: | 24 Vdc nominal, +20%, -15% supply current 200 mA |
Electrical Connection: | 8-PIN quick-disconnect |
Relay Outputs: | FLAME RELAY, SPST (N.O.) |
Contact Rating: | Minimum: 10 mA @ 5 Vdc |
Analog Output: | Optically isolated 4 to 20mA dc current referenced to 24 Vdc common,maximum connected load: 750 Ohms. Fireye recommends the 60-2685-X 24 Vdc power supply for best performance and for a SELV rating of the 4-20mA analog output leads. |
Status Indication: | Multiple LED indication for flame signal strength, flame relay, ready,target, background select and fault codes |
FIREYE火焰檢測器85UVF/IRF系列介紹

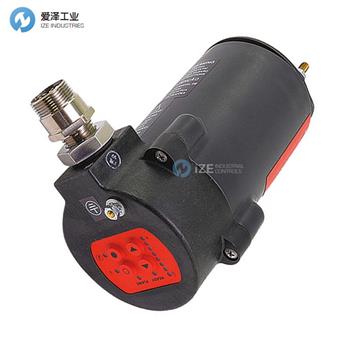

Fireye Phoenix 85UVF/IRF 型火焰掃描儀是基于微處理器的設備，采用固態火焰檢測傳感器。 Phoenix 火焰掃描儀包含一個帶有自動設置開/關閾值的內部火焰繼電器，因此無需遠程火焰放大器或火焰開關。
Phoenix 掃描儀檢測目標火焰中發生的寬頻率調制的幅度（火焰“閃爍”）。在掃描儀設置過程中，火焰掃描儀會自動存儲目標火焰的幅度以及最佳開/關標準。自動選擇適當?shù)膫鞲衅髟鲆妗?Phoenix 掃描儀包含完整的自我診斷和電子自我檢查。
The Fireye Phoenix type 85UVF/IRF flame scanners are microprocessor based devices utilizing a solid state flame detection sensor. The Phoenix flame scanners incorporate an internal flame relay with automatically set ON/OFF thresholds, thereby eliminating the need for a remote flame amplifier or flame switch.
Phoenix scanners detect the amplitude of the modulations (the flame “flicker”) that occur within the targeted flame, over a wide frequency. During the scanner setup procedure, the amplitudes of the target flame are automatically stored by the flame scanner, together with optimum ON/OFF criteria. The appropriate sensor gain is automatically selected. Phoenix scanners incorporate full self diagnostics and electronic self checking.
FIREYE火焰檢測器85UVF/IRF系列其他常用型號：
FIREYE 85UVF1-1QD
FIREYE 85UVF1-1CEX
FIREYE 85UVF1-1CEX-K3
FIREYE 85IRF1-1QD
FIREYE 85IRF1-1CEX
FIREYE 85IRF1-2QD
FIREYE 85UVF1-2QD
FIREYE 85UVF1-1QDK3
FIREYE 85UVF1-2QDK3
FIREYE 85IRF4-1QDWR
FIREYE 85IRF4-2QDWR
FIREYE 85UVF4-1QDWR
FIREYE 85UVF4-1QDK3WR
FIREYE 85UVF4-2QDWR
FIREYE 85UVF4-2QDK3WR
FIREYE flame detector NEW + ORIGINAL+ ONE YEAR WARRANTY
