SUN-CONTROL過濾器WT20.5A系列技術參數
Technical specifications: | |
Scope of delivery: | Suction filter, connection adapter (option), protection cover (option) |
Water pressure membrane: | 0 - 2 bar |
Operating pressure for gas: | 0 - 2 bar |
Gas flow: | 0 - 400 l air/h |
Pressure drop at 100 l air/h: | approx. 10 mbar |
Pressure drop at 400 l air/h: | approx. 40 mbar |
Diaphragm pore size: | < 0,1μm |
Operating temperature: | 0°C - +90°C |
Effective filter area: | 25 cm2 |
Housing volume: | 5 ml |
Materials used: | PTFE, PP |
Dimensions: | Diameter 70 mm, length 120 mm |
Gas connections: | 1/8“ NPT outside thread |
Gas explosion proof ATEX: | EX II 2G Ex h IIB Gb 0°C ≤ Ta ≤ +90°C attestation EPS 19 ATEX 2 177 U |
Assembly: | Mounting in the existing piping |
Language operating instructions: | German and English |

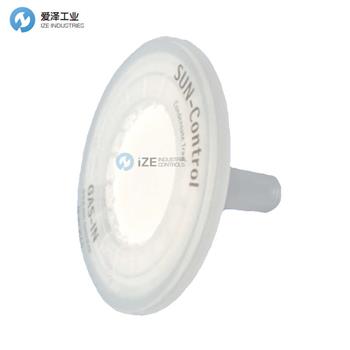

SUN-CONTROL過濾器WT205AET產品介紹
帶集成 Water-Trap WT 20.5 A 備件的吸油過濾器。 無接觸保護，氣體連接 1/8” NPT 外螺紋
Suction filter with integrated Water-Trap WT 20.5 A spare part. Without protection against contact, gas connection 1/8” NPT outside thread
SUN-CONTROL過濾器WT20.5A系列其他常用型號：
SUN-CONTROL WT205AET
SUN-CONTROL WT205AKP
SUN-CONTROL Filter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SUN-CONTROL過濾器WT205AET的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SUN-CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
SUN-CONTROL過濾器WT20.5A系列WT205AET技術參數及介紹
