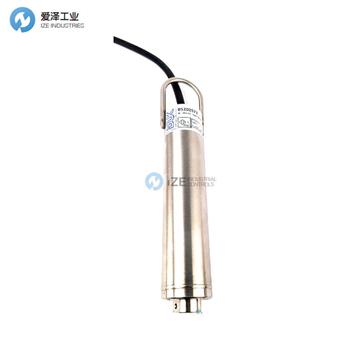

DUK傾斜開關BS202571技術參數
Technical data | |
HOUSING | all stainless steel |
Protection | IP69K |
Actuation angle | approx. 22° in any angle from vertical |
Hysteresis | approximately 10° |
INDUCTIVE SENSOR | PNP, closed if vertical |
Manufacurer / type | ifm / IFS703 |
Conformity | EN 60947-5-2 |
Voltage Ub | 10 up to 30VDC supply class 2 acc UL |
Consumption | <10mA |
Current Ie | max 100mA |
Utilisation category | DC-13 |
Voltage drop | max 2,5VDC |
MTTF | 861 years |
CONNECTION CABLE | rubber |
Length | 7m |
Diameter | 8,4mm |
Flame Retardence | IEC/EN 60332-1-2 |
UV resisitivity | yes |
Ozone resistivity | yes |
Oil resistivity | according EN 60811-404 |
GENERAL | |
Weight | 1,5kg |
Ambient temperature | -25°C up to +55°C due to cable specifications other on request |
Resetting delay, typ. | 1s |
DUK傾斜開關BS2系列介紹
無汞傾斜開關，在偏離垂直方向傾斜 > 22° 時切換/發出信號。
特征：
? 電感式接近傳感器，無汞
? 無論方向如何，驅動角度 >22°
? 10° 轉回滯后
? 2 mm 不銹鋼穩定管
? 柔性抗紫外線、臭氧和油阻燃橡膠連接電纜
? 輕質散裝材料可以獲得更好的浮力的可能性
? IP 69K
? CE
Mercury free tilt switch, switching / giving signal when tilted > 22° out of vertical.
Features:
? inductive proximity sensor, mercury free
? actuation angle >22° reagrdless of direction
? hysteresis for switch-back at 10°
? stable tube of 2 mm stainless steel
? flexible UV-, Ozone- and Oil resistant flame retardant rubber connection cable
? possibility of better buoyancy for light bulk material
? IP 69K
? CE
DUK傾斜開關BS2系列其他常用型號：
DUK BS202571
DUK TILT SWITCH NEW + ORIGINAL+ ONE YEAR WARRANTY
