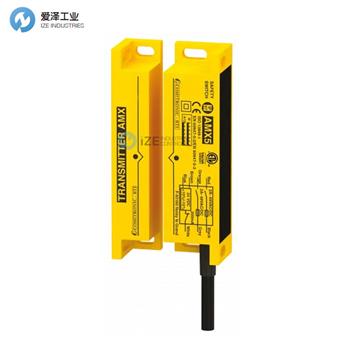

COMITRONIC-BTI安全開關AMX5系列規格描述
Technical datas | |
Switching distance Sn (losing): | 7 mm |
Switching distance Sn (opening): | 10 mm |
Hysteresis/Misalignment: | +2mm/+7mm |
Power supply: | 24V AC/DC-15%1 +10%, 50/60 Hz |
Current consumption: | 40 mA/DC, 50 mA/AC |
Safety outputs: | 2 NO outputs 48V AC, 30V DC,2 A |
Auxiliary output: | PNP-NC, 250 mA |
Electronic double coding with self-contro | ACOTOM3. |
Temperature operation: | -20°C to +60°C |
Max. switching frequency: | 2Hz |
Resistance to vibration: | 10g/ 11 ms |
Shock stress | 10-55 Hz, 1,5 mm |
Protection class: | IP67 |
Mechanical life expectancy: | 50.000.000 operations |
MTTFd/DC | 210 years 1 99% |
Housing: | STAR2E, yellow |
Connection: | Cable 8-pin., 3m/6m/12m |
Standards: | EN60947. 5-1, EN954-1, EN13849-1 |
Electromagnetic immunity : | Acc. to IEC 61000-6-2, acc. to IEC 61000-6-4 |
Weight Emittr/Receiver: | 77g1 211g |
COMITRONIC-BTI安全開關AMX5系列描述
AMX3/4/5
集成自控“ACOTOM?3”
LED狀態顯示正確代碼識別
高安全等級和性能水平：PLe Cat.3
多種選項豐富
無需額外的安全繼電器：可方便地集成到現有系統中，無需修改所有電路圖
AMX3/4/5
Integrated self-control ?ACOTOM?3“
LED status display of the correct code recognition
High safety category and performance level: PLe Cat.3
Wide range of options
No additional safety relay necessary: easy to implement into an existing system wihtout modifying all the electrical diagrams
COMITRONIC-BTI安全開關其他常用型號：
COMITRONIC-BTI AMX3/3m
COMITRONIC-BTI AMX4/3m
COMITRONIC-BTI AMX5/3m
COMITRONIC-BTI AMX3/6m
COMITRONIC-BTI AMX4/6m
COMITRONIC-BTI AMX5/6m
COMITRONIC-BTI AMX3/12m
COMITRONIC-BTI AMX4/12m
COMITRONIC-BTI AMX5/12m
COMITRONIC-BTI AMX3/MKT
COMITRONIC-BTI AMX5/MKT
COMITRONIC-BTI Safety switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于COMITRONIC-BTI安全開關AMX5/6M的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for COMITRONIC-BTI products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
COMITRONIC-BTI安全開關AMX5系列AMX5/6M規格描述
