SCS便攜式充電板監視器770720參數介紹
Specifications | |
Signal detection method | Oslillating chopper method |
Display refresh frequency | 0.2 seconds |
Measurable potential range | 0 to +1999 V (resolution: 1 V) |
Measurement time range | 0.0 to 99.9s |
Continuous operating limit | Approximately 6 hours (with alkaline battery, l.B mode) |
Sensor head rotation angle | 180° (stops every 45°) |
Display | LCD display |
Mode switching | Switch modes by pressing SEL ECT button |
Battery check | Remaining charge displayed in display panel |
Battery | Two AA batteries, Power adapter (sold separately) |
Operating temperature/ humidity range | 10 to 40° C, 60% RH or less, non-condensing |
Measurement accuracy | +10% rdg +2 digit |
Dimensions | 2.8in.x 1.2in. x 6.9in. |
Plate dimensions | 2.8in.x 1.3 in. |
Static electricity capacity | 20pF+2pF |
Weight (including battery) | 8 oz (240 g) |
Country of Origin | Japan |
SCS便攜式充電板監視器770720產品介紹
Description

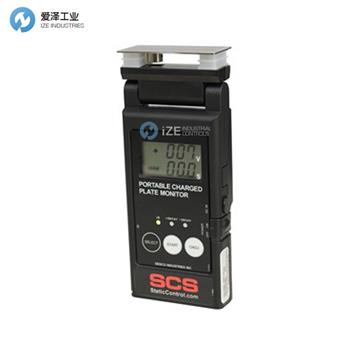

The SCS 770720 Portable Charged Plate Monitor (CPM) is a handheld meter designed to check the offset voltage and discharge times of air ionizers per ANSI/ESD SP3.3 and ESD TR53. The meter’s integrated timer measures decay rates from ±1000V to ±100V to determine the ionizers’ ability to neutralize both positive and negative electrostatic charges within the coverage area. The 180-degree rotary head with 2.75? x 1.25? plate allows the operator to read the display at various angles. The Portable Charged Plate Monitor is calibrated to NIST standards and include a certificate.
描述
SCS 770720 便攜式充電板監視器 (CPM) 是一款手持式儀表，旨在根據 ANSI/ESD SP3.3 和 ESD TR53 檢查空氣離子發生器的偏移電壓和放電時間。 該儀表的集成計時器測量從 ±1000V 到 ±100V 的衰減率，以確定電離器中和覆蓋區域內正負靜電荷的能力。 帶有 2.75? x 1.25? 板的 180 度旋轉頭允許操作員從不同角度讀取顯示。 便攜式充電板監視器已根據 NIST 標準進行校準，并附有證書。
SCS便攜式充電板監視器其他型號：
SCS 770720
SCS Portable Charged Plate Monitor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SCS便攜式充電板監視器770720的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SCS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
SCS便攜式充電板監視器770720產品參數
