Material

Fire protection corresponding to UL94-V0 Contact tracks: Electrolytic copper silver-plated Polyamide (PA 6)

Color

Chassis:

RAL 7035

Cover:

RAL 7035/7001

Basis of test

IEC 60 269-2 (fuse inserts)
IEC 60 947-3

Version

2

Notes

The technical data may vary in the case of UR applications. UR applications only in conjunction with "Special Purpose Fuses".

Suitable for busbars

10 mm (0.39 ")
5 mm (0.2 ")

Number of poles

3-pole

For bar systems with center-to-center spacing

60 mm

Dimensions

Height: 298 mm (12 ")
Width: 210 mm (8.3 ")

Clamping area for laminated copper bars

Height: 10 mm (0.39 ")
Width: 50 mm (2 ")

Type of connection (electrical)

Screw M10

Connection for round conductor cross-sections

10mm2 - 240mm2

Rated operating current max.

400 A

Cable outlet

Top/bottom

Packaging unit

1 pc(s).

Weight/packaging unit

3.36 kg (7.4 lb.)

EAN

4.02818E+12

Customs tariff number

85369095

ETIM 6.0

EC001040

ETIM 5.0

EC001040

eCl@ss 8.0/8.1

27371401

eCl@ss 7.0/7.1

27371401

eCl@ss 6.0/6.1

27371401

eCl@ss 5.1/5.1.4

27370302

Product description (long)

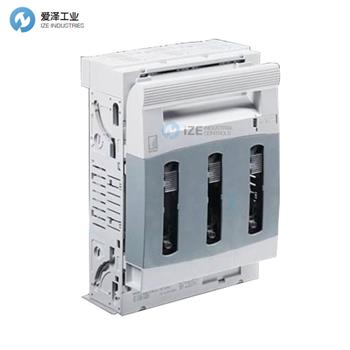

SV NH fuse-switch disconnector size 2 400 A 690 V 3-pole screw M10
