STEUTE拉繩開關ZS75S1O/1SVD技術參數
Technical data | |
Applied standards | EN 60947-5-1, EN 60947-5-5, EN ISO 13850, EN ISO 13849-1 |
Enclosure | aluminium die-cast, powder-coated |
Cover | aluminium die-cast, powder-coated |
Degree of protection | IP 65 to IEC/EN 60529 |
B10d (10 % load) | 100 000 |
TM | max. 20 years |
Contact material | silver |
Switching elements | 1 NC/1 NO contact, type Zb |
Switching system | snap action, positive break NC contacts |
Connection | screw connection terminals |
Cable cross-section | min. 0.5 mm2, max. 2.5 mm2 (incl. conductor ferrules) |
Stripping length | 6 mm |
Cable entry | 2 x M25 x 1.5 |
Rated impulse withstand voltage Uimp | 6 kV |
Rated insulation voltage Ui | 400 V |
Conventional thermal current Ithe | 6 A |
Utilisation category | AC-15 |
Rated operating current/voltage Ie/Ue | 6 A/400 VAC |
Short-circuit protection | 6 A gG/gN fuse |
Ambient temperature | –25 °C … +70 °C |
Mechanical life | > 100 000 operations |
Max. wire length | 2 x 100 m |
Weight | 1100 g |

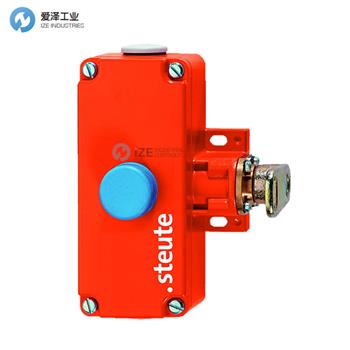

STEUTE拉繩開關ZS75S1O/1SVD產品介紹
金屬外殼
2個聯系人
電線長度可達 2 x 100 m
通過按鈕 (VD) 釋放
拉線和斷線檢測
Metal enclosure
2 contacts
Wire length up to 2 x 100 m
Release by push button (VD)
Wire pull and breakage detection
STEUTE拉繩開關ZS75S系列其他常用型號：
STEUTE ZS75S1O/1SVD
STEUTE ZS75S2O/25VD
STEUTE ZS75S4OVD
STEUTE ZS75S1O/1SVS
STEUTE ZS75S2O/25VS
STEUTE ZS75S4OVS
STEUTE ZS75S2O/2SVZ
STEUTE pull-wire switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于STEUTE拉繩開關ZS75S1O/1SVD的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for STEUTE products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
