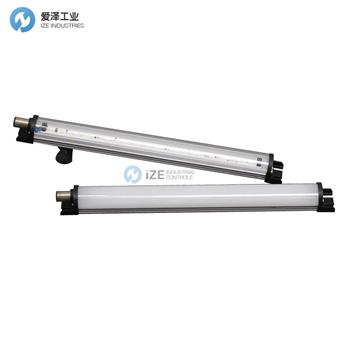

LED2WORK燈管111010-15技術參數
Order number: | 111010-15 |
Model: | LEANLED II opalwei? |
Type: | LED surface-mounted luminaire |
Illuminant: | SMD LED |
Power consumption: | ~19 W |
Lamp luminous flux: | 2835 lm |
Lamp luminous efficiency: | 145 lm/W |
Light distribution: | direct |
Light colour: | Daylight white (5,200 - 5,700K) |
Connected load: | 24V DC ± 10% |
Connection (connector): | M12 A-type coded |
Degree of protection: | IP54 |
Class of protection: | III |
Glare control: | Opal white |
Beam angle (optics): | 120° |
Operating temperature: | -10... +60 °C (14… 140 °F) |
Colour rendering (Ra): | > 85 |
Lamps lifetime (L80/B10): | > 60.000 h |
Housing material: | Aluminium |
Cover material: | Polycarbonate, soft |
Height [B] x Width [C]: | 31 mm x 26 mm (1,22“ x 1,02“) |
Length [A]: | 760 mm |
Weight (net): | 500 g |
Gross weight: | 800 g |
Risk group (DIN EN 62471): | Free group |
Mounting accessories: | 2 pairs mounting holders (holder for swivel or planar moun-ting) in delivery scope |
Dimmable: | optional via accessories |
Markings: | CE, UKCA, ETL Listed (5003526) |
Made in: | Germany |
LED2WORK燈管LEANLED系列型號
LED2WORK 111010-01
LED2WORK 111010-02
LED2WORK 111010-03
LED2WORK 111010-04
LED2WORK 111010-05
LED2WORK 111010-06
LED2WORK 111010-07
LED2WORK 111010-11
LED2WORK 111010-12
LED2WORK 111010-13
LED2WORK 111010-14
LED2WORK 111010-15
LED2WORK 111010-16
LED2WORK 111010-17
LED2WORK 111010-21
LED2WORK 111010-22
LED2WORK Light tube NEW + ORIGINAL+ ONE YEAR WARRANTY
