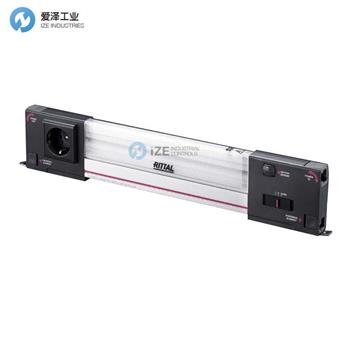

Article number:

SZ 2500.310

Design

with socket, with motion detector

Benefits

Optimum illumination of the entire enclosure
Optionally with clip, screw and magnetic attachment
A configuration to suit every application

Design

Motion sensor
Socket
90° rotating connector
Adjustable light direction
Adjustable light distribution

Material

Light body: Extruded aluminium
Light cover: Polycarbonate
Light ends: PC-ABS

Colour

Enclosure: RAL 7016

Supply includes

Assembly screws

Power consumption

13 W

Connection options

Infeed, 3-pole
Through-wiring, 3-pole

Motion detector

Yes

Overvoltage category

II

Protection class

II (all-insulated)

Light – installation type

Screw-fastening
Clip attachment

Rated impulse withstand voltage, phase to earth

2500 V AC

Rated insulation voltage

300 V AC

Installation options

Directly onto the enclosure section with 25 mm pitch pattern

Luminous flux

1,200 lm

Light colour

4000 K (neutral white)

Note

Connection accessories should be ordered separately

Dimensions

Width: 437 mm
Height: 85 mm
Depth: 44 mm

Operating temperature range

-20 °C...55 °C

Sockets

D, earthing-pin (type F, CEE 7/3)

Rated operating voltage

100 V - 230 V, 1~, 50 Hz/60 Hz

Socket version

D, earthing-pin (type F, CEE 7/3)

IP protection category to IEC 60 529

IP 20

Net weight

0.6 kg
