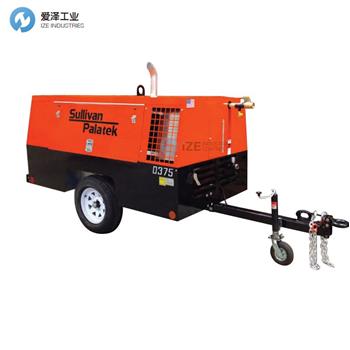

SULLIVAN-PALATEK壓縮機DE375PDCA技術參數
COMPRESSOR | DE375PDCA |
Type | Single Stage, Oil Flooded Rotary Screw |
Ambient Oper. Temp. Range | -20o to +125oF (-29o to +52oC) |
Oil Capacity | 10 gal. (38 L) |
Total Receiver Volume | 3.6 ft. 3 (102 L) |
Air Service Connections | One 1 1/2” NPT/Two 3/4” NPT |
Type Cooling System | Oil to Air |
Type Air Intake System | Two Stage Dry |
Type of Control | 0-100% Demand |
Tire Size | ST 205/75D15 Hwy Tubeless |
Rated Delivery | 375 cfm (10.6 m 3/min) |
Rated Operating Pressure | 150 psig (10.34 Bar) |
Operating Pressure Range | 70-165 psig (4.8-11.38 Bar) |
Estimated Weight, Serviced | 3395 lbs |
ENGINE | DE375PDCA |
Type | Diesel |
Make | CATERPILLAR |
Model | C4.4T (TIER 3) |
Number of Cylinders | 4 |
Bore and Stroke | 4.1” X 5” (105 X 12mm) |
Displacement | 268 in 3 (4.4 L) |
Total Oil Capacity | 8.5 qts. (2.25 L) |
Cooling System Capacity | 16 qts. (15.1 L) |
Battery Rating | 12 Volts |
CCA @ 0oF | 850 Amps |
Idle Speed | 1650 RPM |
Fuel Tank Capacity | 40 gal. (151 L) |
Horsepower @ rated RPM | 126 HP |
Full Load Speed | 2350 RPM |
SULLIVAN-PALATEK壓縮機DE375系列介紹
?直徑127mm（D375）的大直徑雙螺桿空氣端
?0至100％自動容量控制
?兩級干式空氣濾清器
?油位計
?壓縮機和發動機的并排冷卻器
?約翰迪爾或卡特彼勒TIER III發動機
?鋼制油箱
?用于清潔的冷卻器檢修面板
?安全鏈
?15英寸車輪和輪胎
?在可調高度的拉桿上選擇月光眼或球結
?兩側各有一個可鎖定手柄的大型全長工具箱
?7米處的噪聲水平限制為最大76 dBA
?易于拆卸的上機柜
?電鍍外殼-防銹和耐腐蝕
?低油位關閉
?自動關機和保護系統
?控制基礎
?遠程排水
?自動排污閥
?停止，轉向，尾燈
?空載啟動
? Large, 127mm (D375) Diameter Twin Screw Air End
? Automatic 0 to 100% Capacity Control
? Two Stage Dry Type Air Filter
? Oil Level Sight Gauge
? Side by Side Coolers for Compressor and Engine
? John Deere or Caterpillar TIER III Engines
? Steel Fuel Tank
? Cooler Access Panel for Cleaning
? Safety Chains
? 15” Wheels & Tires
? Choice of Lunnette Eye or Ball Hitch on Height Adjustable Drawbar
? Large Full Length Tool Boxes in Each Side with Lockable Handles
? Noise Level Limited to Maximum of 76 dBA at 7 Meters
? Easily Removable Upper Enclosure
? Galvaneal Enclosure-Rust & Corrosion Resistant
? Low Fuel Level Shutdown
? Automatic Shutdown and Protection System
? Containment Base
? Remote Drains
? Automatic Blowdown Valve
? Stop, Turn, Tail Lights
? Unloaded Starting
SULLIVAN-PALATEK壓縮機DE375系列其他常用型號：
SULLIVAN-PALATEK DE300PDHHJD
SULLIVAN-PALATEK DE375PDJD
SULLIVAN-PALATEK DE375PDCA
SULLIVAN-PALATEK compressor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SULLIVAN-PALATEK壓縮機DE375PDCA的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SULLIVAN-PALATEK products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
