DANFOSS壓縮機SM120S9VC技術參數
Product details | |
Net weight | 73 Kg |
Approval | CE |
Capacity control | Fixed speed |
Colour | Blue |
Compressor power supply [V] | 380/3/60 |
Connection type | Brazed |
Description | SM120-9 |
Diameter [mm] | 254 mm |
Frequency [Hz] | 60 |
IP protection class | IP54 (with cable gland) |
Maximum Operating Current [MOC] | 28 A |
Motor protection | Internal overload protector |
Mounting torque [Nm] | 21 N-m |
Network power supply [V/Ph/Hz] | 380-400/3/60 |
Number of starts per hour [Max] | 12 |
Oil charge [L] | 3.25 L |
Phase | 3 |
Power connections | Screw 4.8 mm |
Refrigerant charge [kg] [Max] | 10 kg |
Refrigerants | R22 |
RLA | 21.4 A |
Rotational speed at 60Hz [rpm] | 3500 rpm |
Segment usage | Air conditioning |
Swept volume [cm3] | 166.6 cm3 |
Technology | Scroll |
Total height [mm] | 558 mm |
Type | SM120 |
Viscosity [cP] | 32 cP |
DANFOSS壓縮機SM120S9VC產品介紹

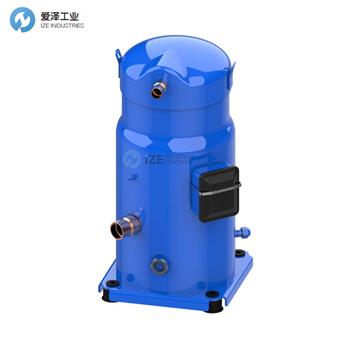

渦旋壓縮機，SM120S9VC
制冷劑： R22， 用途： 空調， 壓縮機電源 [V]： 380/3/60。
Scroll compressor, SM120S9VC
Refrigerants: R22, Segment usage: Air conditioning, Compressor power supply [V]: 380/3/60.
DANFOSS壓縮機SM系列其他常用型號：
DANFOSS SM110S4VC
DANFOSS SM148T4VC
DANFOSS SM185S4RC
DANFOSS SM185S4CC
DANFOSS SM185S4QC
DANFOSS SM185S9CC
DANFOSS SM120S9VC
DANFOSS SCROLL COMPRESSOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DANFOSS壓縮機SM120S9VC的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DANFOSS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
