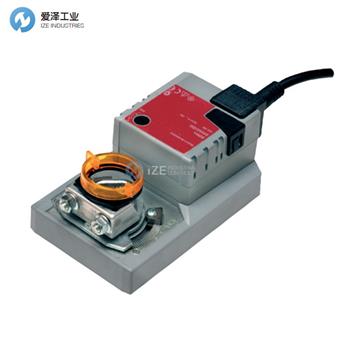

SCHNEIDER風閥執行器MD20A-24技術參數
product or component type | Actuator |
actuator type | Electric |
actuator product series | MD |
actuator model | MD20A-24 |
product destination | Dampers |
actuator | Rotary |
control type | Automatic reset |
feedback signal | 2...10 V DC |
transformer rated power in VA | 4 VA |
power consumption in W | 2 W |
hold-in power consumption in W | 0.4 W |
hold-in power consumption in VA | 4 VA AC |
control signal | Proportional/modulating |
power loss return | Non-spring return |
stroke auto calibration | FALSE |
electrical insulation class | Class III |
tightening torque | 177 lb.in 20 N.m |
position indicator | Visual indicator with position ring |
lead length | 1 m |
actuator rotation | 95 ° |
rotational range adjustment | 95° maximum (limited by an adjustable end stop) |
stroke running time | 150 s |
IP degree of protection | IP54 |
ambient air temperature for operation | -30…50 °C |
relative humidity | 0…95 % RH, non-condensing |
ambient air temperature for storage | -40…80 °C |
SCHNEIDER風閥執行器MD20A-24產品介紹
SCHNEIDER風閥執行器MD20A-24，用于在建筑服務裝置的通風和空調系統中操作空氣，控制風閥
? 空氣控制風門最高約4 m2(4.8 yard2 )
? 扭矩 20 Nm (180 in-lb)
? 標稱電壓 AC/DC 24 V
? 控制：調制 0 – 10 V
? 位置反饋：2 – 10 V。
MD20A-24 damper actuators for operating air control dampers in ventilation and air-conditioning systems for building services installations
? For air control dampers up to approx. 4 m2(4.8 yard2 )
? Torque 20 Nm (180 in-lb)
? Nominal voltage AC/DC 24 V
? Control: Modulating 0 – 10 V
? Position feedback: 2 – 10 V
SCHNEIDER風閥執行器MD20A-24技術尺寸
SCHNEIDER風閥執行器其他常用型號：
SCHNEIDER MD5A-24
SCHNEIDER MD10A-24
SCHNEIDER MD20A-24
SCHNEIDER MD40A-24
SCHNEIDER Damper Actuator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SCHNEIDER風閥執行器MD20A-24的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SCHNEIDER products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
