LUMEL溫濕度傳感器P18D系列技術參數
Inputs | |||
Input type | Measuring range | Error | |
Temperature | P18, P18D: -40 .. -20 .. 60 .. 85oC | +/- 0.5% | |
Relati ve humidity | 0 .. 100% | +/- 2% for RH = 10 .. 90% | |
Outputs | |||
Output type | Admissible load resistance | Remarks | |
4 .. 20 mA | Rload ≤ 100Ω | for P18/P18D | |
Rload ≤500Ω | P18L | ||
0 .. 10 V | Rload≥1kΩ | only P18/P18D | |
Digital interface (only P18/P18D) | |||
Interface type | Transmission mode | Baud rate | |
RS-485 Modbus RTU | 8N1, 8N2, 8E1, 8O1 | 4,8; 9,6; 19,2; 38,4; 57,6; 115,2 kbit/s | |
EXternal features | |||
Overall dimensions | 38 ′ 58 ′ 118 mm | ||
Weight | 125 g | ||
Protecti on grade | ensured by the casing: IP65 | ||
Fixing | on a wall | ||
Rated operating conditions | |||
Supply voltage | P18, P18D 9 | 9 .. 24 V d.c./a.c | input power < 0.5 VA |
P18L | 19 .. 30 V d.c. | input power < 1 VA | |
Temperature | ambient: -20...23...60°C | ||
Humidity | < 95% | inadmissible condensati on | |
Operati ng positi on | any | in applicati on not exposed to water contact | |
sensor chamber towards the earth | in applicati on exposed to water contact | ||
Preheati ng ti me | 15 minutes | ||
Air fl ow rate | ≥0.5 m/s (P18/ P18D) | ||

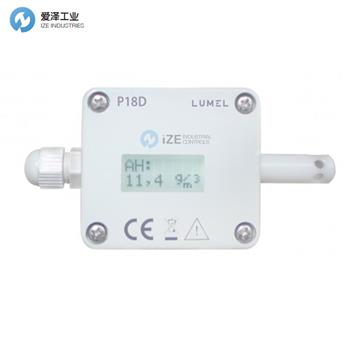

LUMEL溫濕度傳感器P18D-100E0產品介紹
P18, P18D
? Built-in temperature and humidity sensor or with probe on 0.5 m wire.
? Calculati on of selected physical quanti ti es (dew-point temperature, absolute humidity).
? Interface RS-485 Modbus.
? 2 analog outputs 0/4…20 mA or 0…10 V (opti on).
? Standard d.c. current or d.c. voltage output signal
? Storage of measured and calculated maximum and minimum values
? Visualisati on of measured value on a LCD display (only P18D)
P18，P18D
?內置溫度和濕度傳感器或帶0.5 m導線的探頭。
?計算選定的物理量（露點溫度，絕對濕度）。
?接口RS-485 Modbus。
?2個模擬輸出0/4…20 mA或0…10 V（最佳）。
?標準直流電 當前或直流 電壓輸出信號
?存儲測量和計算的最大值和最小值值
?在LCD顯示屏上可視化測量值（僅P18D）

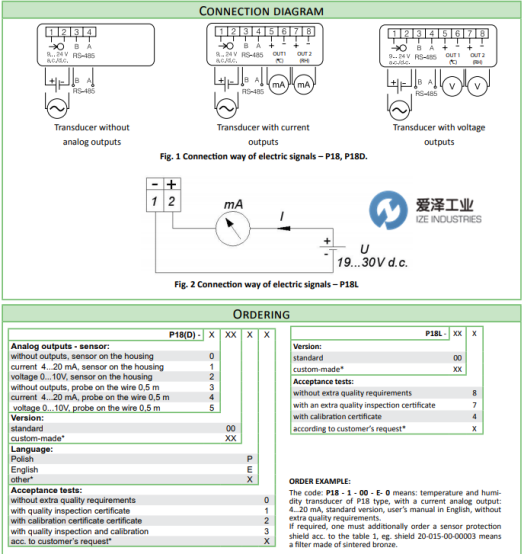

LUMEL溫濕度傳感器P18D-100E0選型
LUMEL溫濕度傳感器P18D-100E0
愛澤工業(IZE INDUSTRIES)特價經銷、常用LUMEL溫濕度傳感器型號：
LUMEL P18D-100E0
LUMEL P18D-200E0
LUMEL P18L-00874
