VAISALA溫濕度變送器HMT330系列技術參數
Relative humidity | |
Measurement range | 0...100 %RH |
at +20 °C (+68 °F) | ± 1 %RH (0...90 %RH) |
at -20...+40 °C (-4...+104 °F) | ± (1.0 + 0.008 x reading) %RH |
at -40...-20 °C, +40...+180 °C (-40...-4 °F, +104...+356 °F) | ± (1.5 + 0.015 x reading) %RH |
Factory calibration uncertainty (+20 °C / +68 °F) | |
0...40 %RH | ± 0.6 %RH |
40...97 %RH | ± 1.0 %RH |
Humidity sensors | |
for typical applications | Vaisala HUMICAP 180 |
chemical purge/warmed probe | Vaisala HUMICAP 180C |
high chemical concentrations | Vaisala HUMICAP 180L2 |
For Vaisala HUMICAP 180L2 sensor | |
at -10...+40°C (+14...+104 °F) | ± (1.0 + 0.01 x reading) %RH |
at -40...-10 °C,+40...+180 °C (-40...+14 °F, +104...+356 °F) | ± (1.5 + 0.02 x reading) %RH |
Response time (90 %) at 20 °C (+68 °F) in still air | |
with grid filter | 8 s |
with grid + steel netting filter | 20 s |
with sintered filter | 40 s |
Temperature | |
Accuracy at +20 °C (+68 °F) | ± 0.2 °C |
Mechanics | |
Cable bushing | M20x1.5 (cable diameter 8...11mm) |
Conduit fitting | M20x1.5 / 1/2"NPT |
8-pole connector (male) | RKC8/9.M12 |
8-pole connector with 5 m cable (female) | RKT8-282/5M |
Probe cable diameter | |
HMT333 | 6.0 mm |
other probes | 5.5 mm |
Housing material | G-AlSi 10 Mg (DIN 1725) |
Housing classification | IP 65 (NEMA 4) |
VAISALA溫濕度變送器HMT330系列介紹
HMT330 專為對測量穩定性和定制性要求極高的工業應用而設計。
特性/優勢
? 六款型號，滿足嚴苛的工業應用需求
? 全方位測量 0...100%RH，溫度范圍高達 +180 °C (+356 °F)（具體數值取決于型號）
? 耐壓高達 100 bar（具體數值取決于型號）
? 采用 Vaisala HUMICAP? 傳感器，確保精度和穩定性
? 以圖形方式顯示測量趨勢和一年歷史記錄
? 多語言用戶界面
? 在嚴苛的化學濃度環境下仍能保持優異性能
? IP65 防護等級，耐腐蝕
? 可追溯至 NIST 標準（附帶證書）

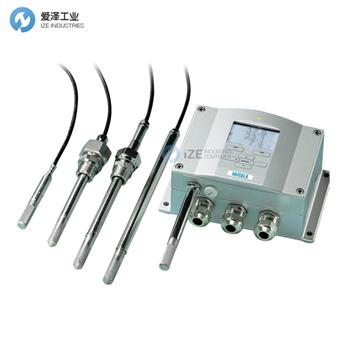

HMT330 is designed for demanding industrial applications where stable measurement and wide customization possibilities are important.
Features/Benefits
? Six models for demanding industrial applications
? Full 0...100 %RH measurement, temperature range up to +180 °C (+356 °F), depending on model
? Pressure tolerance up to 100 bar (depending on model)
? Vaisala HUMICAP? Sensor for excellent accuracy and stability
? Shows measurement trends and 1-year history graphically
? Multilingual user interface
? Excellent performance in harsh chemical concentrations
? Corrosion resistant IP65 housing
? NIST traceable (certificate included)
VAISALA溫濕度變送器HMT330系列其他常用型號：
VAISALA HMT330 3E0B001BCAC100A0ACABAA1
VAISALA HMT3307S0B104BCAC100A0CCAVAA1
VAISALA HMT3301A0A101BCAB100A01CABAA1
VAISALA HMT330820A101BCAJ100A01ANBAA1
VAISALA HMT3305MOB121CXAX100A0CAABAA1
VAISALA HMT3307S1D001XXCX103A0DAABAA
VAISALA HMT330360B101BCFH113A0AACBAA1
VAISALA HMT3307S1D101BCAE100A0FFCVAA1
VAISALA HMT330820B101BCAJ100A0AANBAA1
VAISALA HMT330 3F0B001BCAC100A0AACBAA1
VAISALA Temperature and humidity transmitterNEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于VAISALA溫濕度變送器HMT330 3E0B001BCAC100A0ACABAA1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for VAISALA products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
VAISALA溫濕度變送器HMT330系列HMT330 3E0B001BCAC100A0ACABAA1技術參數及介紹
