E+E溫濕度傳感器EE160系列技術參數
Technical Data | |
Measurands | |
Relative humidity | |
Accuracy1) at 20 °C | ±2.5 %RH |
Temperature dependency, typ. | ±0.03 %RH / °C |
Temperature Accuracy at 20 °C | ±0.3 °C (±0.54 °F) |
Outputs | |
Analogue | 0 - 10 V 0 < IL < 1 mA |
Digital interface | RS485 (EE160 = 1 unit load) |
Passive T sensor | 4-wire connection, see ordering guide |
General | |
Power supply |
|
Electrical connection | Screw terminals, max. 1.5 mm2 |
Enclosure | Polycarbonate, UL94 V-0 approved |
Protection rating | IP65 / NEMA 4X |
Cable gland | M16x1.5 |
Electromagnetic compatibility | EN 61326-1 |
Working range | -40...60 °C (-40...140 °F) / 10…95 %RH |
Storage conditions | -20...60 °C (-4...140 °F) / 10…90 %RH, non-condensing |
E+E溫濕度傳感器EE160系列介紹
EE160 針對樓宇自動化中的相對濕度 (RH) 和溫度 (T) 進行經濟高效、準確的測量進行了優化。
可靠的
即使在污染或侵蝕性環境中，也可通過探頭內部的封裝測量電子設備和傳感元件的 E+E 專有保護來確保長期穩定性。
通用性
測量數據可通過兩個電壓或電流（2 線）輸出，或通過 BACnet MS/TP 或 Modbus RTU 協議的 RS485 接口獲得。此外，EE160 具有無源 T 輸出。
功能設計
EE160 可用于墻壁或管道安裝。 IP65 / NEMA 4X 外殼將安裝成本降低，并提供出色的防污染和冷凝保護。
舒適的配置和調整
通過可選的配置適配器和免費的 EE-PCS 產品配置軟件，用戶可以設置 RS485 接口參數、輸出縮放以及對 RH 和 T 進行一點或兩點調整。
The EE160 is optimized for cost effective, accurate measurement of relative humidity (RH) and temperature (T) in building automation.
Reliable
Best long-term stability even in polluted or aggressive environment is ensured by the encapsulated measurement electronics inside the probe and E+E proprietary protection of the sensing element.
Versatile
The measured data is available on two voltage or current (2-wire) outputs, or on the RS485 interface with BACnet MS/TP or Modbus RTU protocol. Additionally, the EE160 features a passive T output.
Functional Design
EE160 is available for wall or duct mount. The IP65 / NEMA 4X enclosure minimizes installation costs and provides outstanding protection against contamination and condensation.
Comfortable Configuration and Adjustment
With an optional configuration adapter and the free EE-PCS Product Configuration Software, the user can set the RS485 interface parameters, the output scaling and perform one or two point adjustment for RH and T.

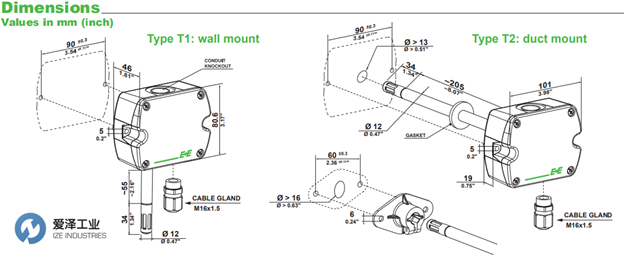

E+E溫濕度傳感器EE160系列技術尺寸

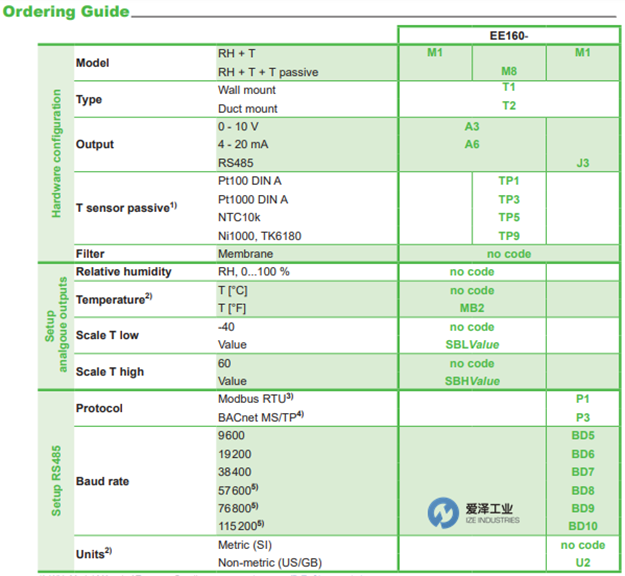

E+E溫濕度傳感器EE160系列選型
E+E溫濕度傳感器EE160系列其他常用型號：
E+E EE160-M1T1A3SBL0SBH50
E+E EE160-M1T2A3SBL0SBH50
E+E EE160-M1T2A6SBL0SBH50
E+E EE160-M1T1A6P1BD5
E+E EE160-M1T2A6P1BD5
E+E EE160-HT6XXPBB/TX004M
E+E EE160-HT6xAPBBTx004M
