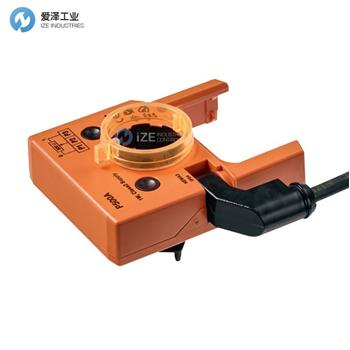

BELIMO電位計P500A技術參數
Technical data | ||
Electrical data | Nominal resistance | 500 ? |
Tolerance | ±5% | |
Loading capacity | Max. 1 W | |
Linearity | ±2% | |
Resolution | Min. 1% | |
Residual resistance | Max. 5% on both sides | |
Connection feedback potentiometer | Cable 1 m, 3 x 0.75 mm2 halogen-free | |
Safety | Protection class IEC/EN | III Safety extra-low voltage |
Protection class UL | UL Class 2 Supply | |
Degree of protection IEC/EN | IP54 | |
Degree of protection NEMA/UL | NEMA 2, UL Enclosure Type 2 | |
EMC | CE according to 2014/30/EU | |
Certification IEC/EN | IEC/EN 60730-1 and IEC/EN 60730-2-14 | |
Certification UL | cULus according to UL 60730-1A, UL 60730-2-14 and CAN/CSA E60730-1:02 | |
Mode of operation | Type 1 | |
Rated impulse voltage supply | 0.8 kV | |
Control pollution degree | 3 | |
Ambient temperature | -30...50°C | |
Non-operating temperature | -40...80°C | |
Ambient humidity | 95% r.h., non-condensing | |
Maintenance | Maintenance-free | |
Weight | Weight | 0.19 kg |

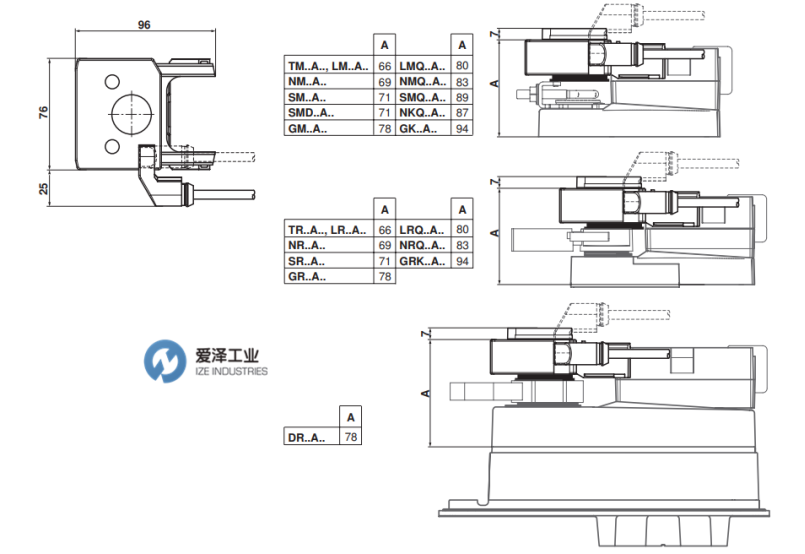

BELIMO電位計P500A產品尺寸圖
BELIMO電位計P500A其他型號：
BELIMO 5000A
BELIMO P5000A GR
BELIMO P500A
BELIMO Actuator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BELIMO電位計P500A的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for BELIMO products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
BELIMO電位計P500A電氣及機械參數
