RITTAL冷卻裝置SK 3332.540技術參數
Product description | |
Article number: | SK 3332.540 |
Product description | Energy efficient Blue e wall-mounted cooling units in performance classes 300 W to 4000 W and with integrated electrical condensation evaporation for 1000 W and above. |
Benefits | May be linked to the IoT interface via the Blue e IoT adapter for cooling units with an output of 500 W or higher and e-comfort controllers |
Material | Carbon steel |
Color | RAL 7035 |
Supply includes | Condenser with hydrophobic RiNano coating |
Total cooling output to DIN EN 14511 | Cooling output L35 L35/50 Hz: 3.95 kW |
Rated operating voltage | 400 V, 3~, 50 Hz |
Rated current max. | At 50 Hz: 4.2 A |
Start-up current (max.) | At 50 Hz: 9.2 A |
Air throughput (unimpeded air flow) | External circuit: 2,000 m3/h |
Energy efficiency ratio (EER) 50/60 Hz L35 L35 | Refrigeration factor L35 L35 (EER) 50 Hz: 2.47 |
Version | wall-mounted |
Dimensions | Width: 500 mm |
Protection category IP to EN 60 529 | External circuit, IP 34 |
Protection category NEMA | UL Type 12 |
Refrigerant/cooling medium | Refrigerant: R134a |
Temperature control | e-Comfort Controller (factory setting +35 °C) |
Operating temperature range | 10 °C...55 °C( 50 °F...131 °F ) |
Storage temperature range | -40 °C...70 °C( -40 °F...158 °F ) |
Setting range | 20 °C...55 °C( 68 °F...131 °F ) |
Rated power Pel | Rated power L35 L35/50 Hz: 1.6 kW |
Permissible operating pressure (p. max.) | 28 bar( 406.1 PSI ) |
Pre-fuse | Motor circuit-breaker: 6.3...10 A |
Note on Model No.: | Full internal mounting not possible |
RITTAL冷卻裝置SK 3332.540產品介紹

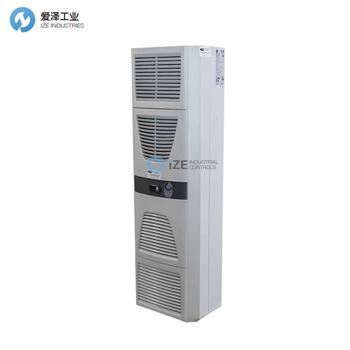

Wall-Mounted Cooling Unit TopTherm Blue e 0.3 - 4 kW
Energy efficient Blue e wall mounting cooling units in performance classes 300 W to 4000 W, and with integrated electrical condensation evaporation for 1000 W and above. Available in the special formats “horizontal” and “flat”.
壁掛式冷卻裝置 TopTherm Blue e 0.3 - 4 kW
高效節能的 Blue e 壁掛式冷卻裝置，性能等級為 300 W 至 4000 W，并具有 1000 W 及以上的集成電冷凝蒸發器。 提供特殊格式“水平”和“平面”。
RITTAL冷卻裝置其他常用型號：
RITTAL SK 3332.540
RITTAL Cooling Unit NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于RITTAL冷卻裝置SK 3332.540的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for RITTAL products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
RITTAL冷卻裝置SK 3332.540技術參數及介紹
