ABNOX注油泵PT-40622.00-EC產品規格
Technical Data | |
Suction tube dia. [mm] | 32 |
Input medium specification | Lubricants up to NLGI 3 / 5'000 mPa.s |
Delivery rate at pump outlet [cm3/min] | 1295 |
Delivery rate per double stroke [cm3] | 17 |
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar] | 140 |
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar] | 233 |
Connection medium outlet external thread | 1/4'' BSP |
Compressed air quality | ISO 8573-1:2020 [6:4:4] |
Max. air consumption [l/min.] | 217 |
Optimum pneumatic operatingpressure [bar] | 6 |
Min. / max. pneumatic operating pressure [bar] | 2/10 |
Pneumatic connection internal thread | 1/4'' BSP |
Min. / max. operatingtemperature [°C] | 10/40 |
ABNOX注油泵PT-40622.00-EC產品介紹
空氣操作的25:1型S型潤滑脂泵適用于轉移中高粘度的潤滑劑。此S型泵適用于輸送粘度高達60,000厘斯的硅脂和硅油。不適用于固化和磨蝕性介質，或含有磨蝕性填充物的介質！
吸入系統和氣動馬達的獨立設計可防止介質可能滲透到泵頭中。
這種壓力比為25:1的潤滑脂泵非常適合作為ABNOX計量閥或填充系統的供給泵。
空氣操作單泵25:1 型號S 2010版本
貨號：見表
型號：比率25:1 型S
設計：容器高度280-840毫米

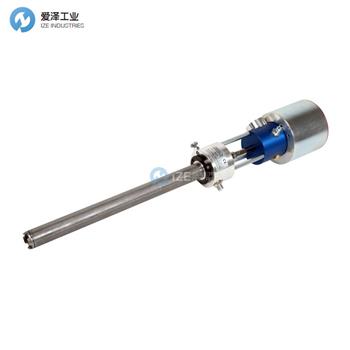

The Air-operated Grease Pump 25:1 from type S is suitable for transferring lubricants of medium to high viscosity levels. This type S Pump is qualified for delivering silicon greases and silicon oils with a viscosity up to 60'000 cST. Not suitable for hardening and abrasive media, or with abrasive filling substances!
The separate design of Suction System and Air Motor prevents a possible permeation of the medium into the Pump Head.
This Grease Pump with pressure ratio from 25:1 is ideal applicable as Feeding Pump for ABNOX Metering Valves or as Filling System
Air-operated Single Pump 25:1 Type S Version 2010
Article No.：see table
Modell：Ratio 25:1 Type S
Design：Container height 280-840 mm
ABNOX注油泵其他常用型號：
ABNOX PT-40622.00-EC
ABNOX 4062010
ABNOX 4062100
ABNOX 4062200
ABNOX 4062300
ABNOX 4062400
ABNOX Oil filling pump NEW + ORIGINAL+ ONE YEAR WARRANTY
