PRATER旋轉閥PAV10產品參數
Specification | |
Capacity | |
Theoretical | 0.53 cu. Ft.(15.0 L) / rev |
Practical | 0.42 cu. Ft.(11.93 L) / rev. |
Housing | |
Material | Gray Cast Iron |
Thickness | 0.625" x 0.31" 15.9 x 7.9 mm |
Flanges | |
Square Outline | Drilled |
Round or Square | |
Inlet Size | 10.0" / 254 mm |
Outlet Size | 10.0" / 254 mm |
Thickness | 0.5" / 12.7 mm |
Bearings | |
Type | Ball Bearing |
Size | 1.44" / 36.5 mm |
Life Rating L-10 | > 60,000 hours |
Outboard Mounted | Yes |
Shaft | |
Material | Mild or Stainless Steel |
Drive Stub Shaft D | 1.44" / 36.5 mm |
Packing Seal | Abrasion Resistant |
Drive Includes | |
1.0 Hp, 60Hz, 3 Ph 230/460 V. Motor, Motor Base | |
Gear Reducer, Chain Drive TEFC & OSHA Guard | |
Approx. Weight & Dimensions | |
Airlock Only | |
Length | 25-3/16" / 640 mm |
Width | 15.0" / 381 mm |
Height | 15.0" / 381 mm |
Weight | 230 lbs / 104 kg |
Shipping Weight | 275 lbs / 125 kg |
With Drive & Standard Guard | |
Length | 27-1/4" / 692 mm |
Width | 25-3/4" / 654 mm |
Height | 16-3/4" / 425 mm |
Weight | 280 lbs / 127 kg |
Shipping Weight | 325 lbs / 147 kg |
Sound Level | < 75 db scale A |
Paint | |
Primer | Gray Chromate |
Finish | White, Urethane |
PRATER旋轉閥PAV10產品介紹
可用功能
?空氣密封
?食品級鐵氟龍密封件
?食品級白色環氧涂料
?304或316不銹鋼主體和轉子
?哈氏合金主體和轉子
?剪切銷/零速開關
?高溫軸承和密封件可在1100°F下運行
?耐磨耐腐蝕涂料
?入口擋板/入口V型犁用于剪切保護
?放電適配器/護手板
?螺栓固定或靈活的技巧
?通風口袋/通風外殼
?模切法蘭墊片
?提供手動手搖曲柄或氣動維護門
?驅動器：1 HP，TEFC或TEXP /各種電壓可用
PRATER 10“旋轉氣閘
?由高強度鑄鐵或不銹鋼主體和端板制成
?8葉片，低碳鋼，開放式轉子，帶焊接袋底
?自調節，免維護的填料函組件
?外裝式免維護軸承
?通用法蘭定制鉆孔，無需額外付費
?免費溫度補償
?端板已預先鉆孔和攻絲，以進行可選的軸空氣凈化
?使用隨附的千斤頂螺栓孔快速輕松地卸下端板
?使用標準組件時，工作溫度高達500°F
?多數傳動組件的鍵軸延伸
?優質，1馬力，逆變器負荷，斜齒輪減速電機
AVAILABLE FEATURES
? Air purged seals
? Food grade Teflon seals
? Food grade white epoxy paint
? 304 or 316 stainless steel body & rotor
? Hastelloy body and rotor
? Shear pins / Zero speed switch
? High temp bearings & seals for operation to 1100° F
? Wear & corrosion resistant coatings
? Inlet baffle / Inlet v-plow for shear protection
? Discharge adapter / Finger guards
? Bolt on or flexible tips
? Vented pockets / Vented housing
? Die cut flange gaskets
? Manual hand crank or pneumatic maintenance gates available
? Drive: 1 HP, TEFC, or TEXP / Various voltages available

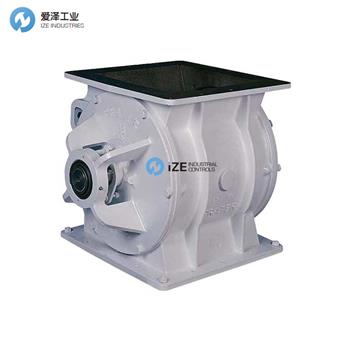

PRATER 10" ROTARY AIRLOCK
? Constructed of high strength cast iron or stainless steel body & end plates
? 8 blade, mild steel, open-end rotor with welded pocket bottoms
? Self-adjusting, maintenance-free packing gland assemblies
? Outboard mounted, maintenance-free bearings
? Universal flanges custom-drilled at no extra charge
? Complimentary temperature compensation
? End plates pre-drilled & tapped for optional shaft air purge
? Quick and easy end plate removal using included jack bolt holes
? Operating temperature up to 500° F with standard components
? Keyed shaft extension for most drive assemblies
? Premium, 1 HP, inverter duty, helical gear motor

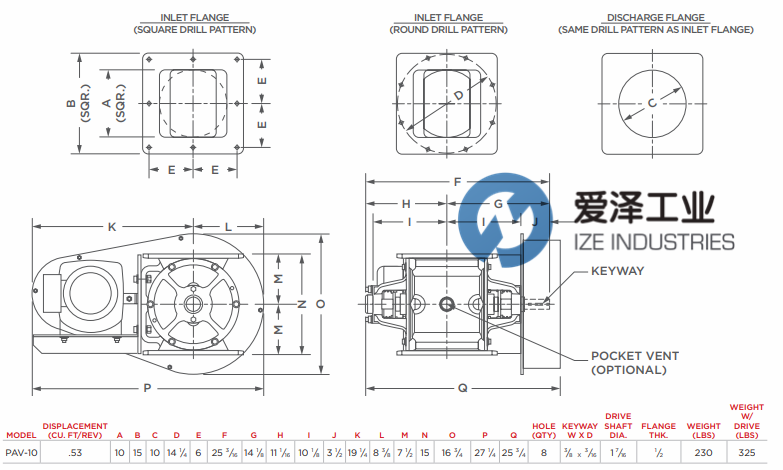

外觀尺寸
PRATER旋轉閥PAV10其他常見型號：
PRATER PAV14
PRATER PAV16
PRATER PAV6
PRATER PAV12
PRATER PAV10
PRATER Rotary Airlock NEW + ORIGINAL+ ONE YEAR WARRANTY
