DUSTERLOH馬達KM63系列技術參數
Hydraulic characteristic values | ||
Geometr. displacement | [cm3/rev] | 66 |
Theor. spec. torque | [Nm/bar] | 1,05 |
Average spec. torque | [Nm/bar] | 0,95 |
Peak pressure | [bar] | 315 |
Max. operating pressure | [bar] | 250 |
Continuous pressure | [bar] | 160 |
Max. operating torque | [Nm] | 237 |
Continuous torque | [Nm] | 152 |
Drain line pressure | [bar] | max.1 |
Hydraulic fluid temperature range | [K] | 243-363 |
Viscosity range | [mm2/s] | 20 - 150 (max. 1000 mm2/s at start) |
Pressure fluids; | HM and HV, definition to CETOP RP 75 H (mineral oil based fluids). | |
Characteristic values according to VDI 3278 | ||
Weight: | [kg] | 18,8 |
Mounting position: | as required | |
Operating speed range: | [rpm] | 5 ÷ 1200 |
Moment of inertia: | [kgm2 ] | 0,00033 |
Continuous power: | [kW] | 9,5 |
Intermittent power: | [kW] | 11,0 |

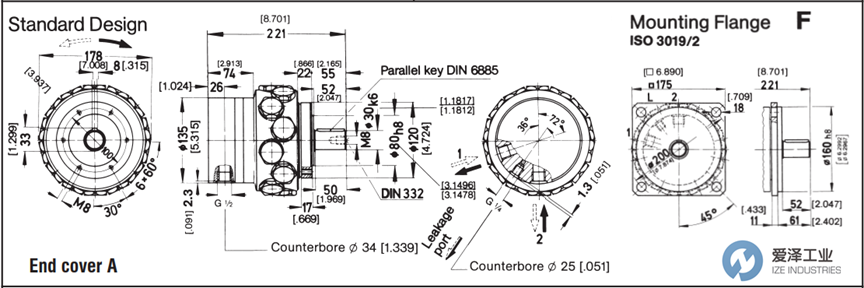

DUSTERLOH馬達KM63系列技術尺寸

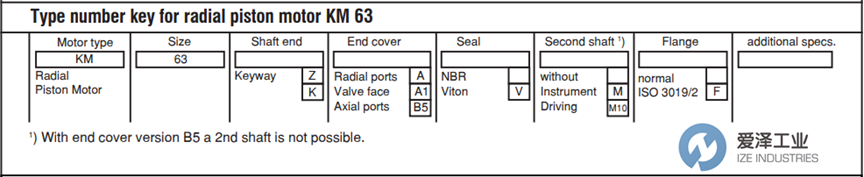

DUSTERLOH馬達KM63系列選型
DUSTERLOH馬達KM63系列其他常用型號：
DUSTERLOH KM63ZAVM
DUSTERLOH KM63ZA1VMF-GD1038
DUSTERLOH KM63ZB5VMF
DUSTERLOH KM63KAVMF
DUSTERLOH KM63KA1VMF
DUSTERLOH KM63KB5VMF
DUSTERLOH MOTOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DUSTERLOH馬達KM63ZA1VMF-GD1038的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DUSTERLOH products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
DUSTERLOH馬達KM63系列KM63ZA1VMF-GD1038技術參數及選型
