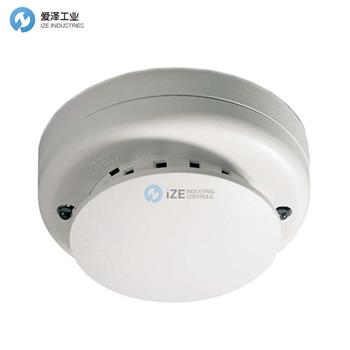

ARITECH煙霧探測器DP721R技術參數
Technical specifications | |
General | |
Status indication | White LED (red in alarm), Yellow LED (test & fault) |
User interface | LEDs |
Compatibility | Aritech conventional zones |
Reset voltage | <2.5 V max |
Reset time | 1 s |
Alarm levels | 1 |
Connectivity | Aritech conventional base |
Electrical | |
Power supply type | Zone powered |
Operating voltage | 8.5 to 33 VDC |
Current consumption | 100 μA (quiescent at 24 VDC) |
Detection | |
Detection principle | Optical light scatter |
Monitoring | Alarm threshold, Contamination level |
Sensitivity | 10%/m (+1.6%, -3.3%) |
Zone length | Cable dependent |
Output | |
Output quantity | 1 |
Output type and rating | Relay (2 A at 30 VDC, 1 A at 120 VAC) |
Programmable | No |
Remote alarm output | NA |
Physical | |
Physical dimensions | 100 x 50 mm (? x H) |
Net weight | 115 g |
Colour | Cloud white (RAL 9001) |
Mounting type | Ceiling mount |
Material (body) | Plastic |
Environmental | |
Vandal proof | No |
Operating temperature | -10 to +60°C |
Storage temperature | -10 to 70oC |
Application temperature (typical) | +25°C |
Relative humidity | 0 to 95% noncondensing |
Environment | Indoor |
IP rating | IP43 |
Regulatory | |
Compliancy | CE, REACH, RoHS 3, WEEE |
Certification | CPR |
Standards | EN54-7 |
ARITECH煙霧探測器DP721R產品介紹
? 通過自我診斷防止誤報
? 易于維護的靈敏度級別測試模式
? 現場清潔和服務
? 適合工作的合適探測器
? Preventing false alarms with self diagnostics
? Maintenance friendly sensitivity level test mode
? Field cleaning and service
? The right detector for the right job
ARITECH煙霧探測器700系列其他常用型號：
ARITECH DP721R
ARITECH DP721I
ARITECH DP721RTA
ARITECH SMOKE DETECTOR NEW + ORIGINAL+ ONE YEAR WARRANTY
