SUBCONN水密連接器MCBH3M技術參數
Connector specifications | |
Voltage rating | 300 V DC/AC rms |
2, 3 and 4 contacts current rating | 10 A per contact (max 20 A per connector) |
5, 6 and 8 contacts current rating | 5 A per contact (max 20 A per connector) |
G2 2, 3 and 4 contacts current rating | 5 A per contact (max 20 A per connector) |
Insulation resistance | > 200 Mohm |
Contact resistance | < 0.01 ohm |
Wet matings | > 500 |
Temperature rating (water) | - 4 to 60?C, 25 to 140?F |
Temperature rating (air) | - 40 to 60?C, - 40 to 140?F |
Storage temperature rating | - 40 to 60?C, - 40 to 140?F |
Qualified pressure tested | 800 bar, 11,600 psi |
Depth rating PEEK | 300 bar, 4,350 psi |

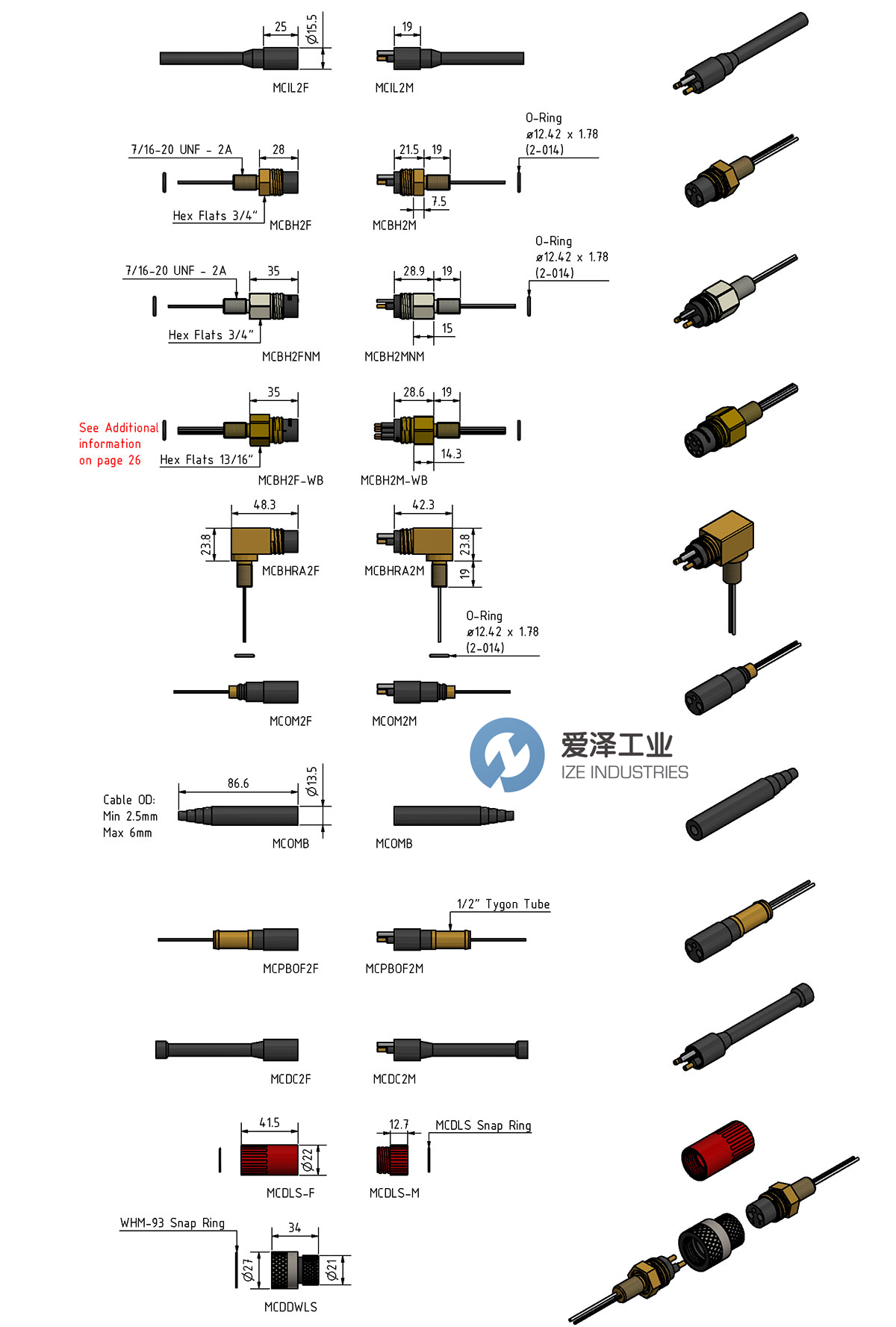

SUBCONN水密連接器Micro Circular系列選型圖
SUBCONN水密連接器Micro Circular系列其他常用型號：
SUBCONN MCBH3M
SUBCONNMCIL21M
SUBCONN MCBH21F
SUBCONN Data reader base NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SUBCONN連接器MCBH3M的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SUBCONN products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
