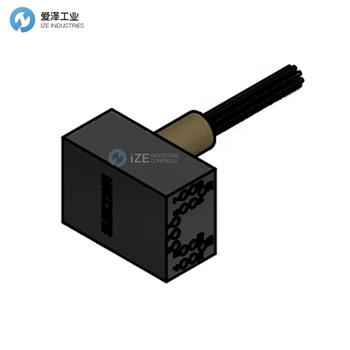

SUBCONN連接器DLPBH13M規格描述
Connector specifications | |
Voltage rating | 600 V DC/AC rms |
Voltage rating on data wire | 250 V DC/AC rms |
Current rating on power wire | 4 A per contact (max 16 A per connector) |
Data rate | 1 Gbit/s (up to 75 m) |
Insulation resistance | > 200 Mohm |
Contact resistance | < 0.01 ohm |
Wet matings | > 500 |
Temperature rating (water) | - 4 to 60?C, 25 to 140?F |
Temperature rating (air) | - 40 to 60?C, - 40 to 140?F |
Storage temperature rating | - 40 to 60?C, - 40 to 140?F |
Qualified pressure tested | 600 bar, 8,700 psi |
Depth rating PEEK | 300 bar, 4,350 psi |
Material specifications | |
Connector body | Chloroprene rubber |
Bulkhead body | Brass, stainless steel or titanium |
Contacts | Female sockets in gold plated brass UNS - |
O-rings | Nitrile |
Locking straps | Chloroprene rubber |
Inline cable (100 cm, 3.3 ft) | 4 pair 24 AWG, 0.20 mm2 PUR Power conductors |
Bulkhead leads (100 cm, 3.3 ft) | CAT 5E patch cable, 5 x 20 AWG, 0.52 mm2 |

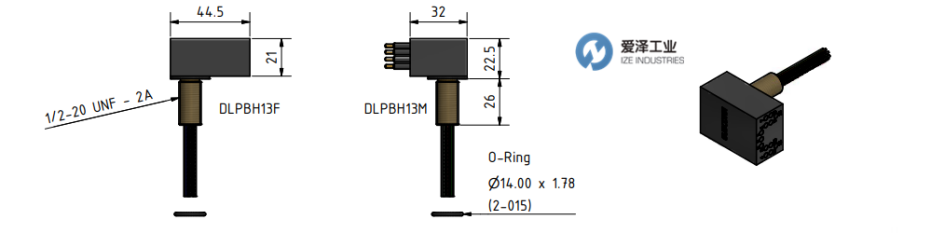

SUBCONN連接器DLPBH13M尺寸圖
SUBCONN連接器DLPBH13M其他常用型號：
SUBCONN DLPIL13F
SUBCONN DLPIL13M
SUBCONN DLPBH13F
SUBCONN DLPBH13M
SUBCONN DLPDC13F
SUBCONN DLPDC13M
SUBCONN Data reader base NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SUBCONN連接器DLPBH13M的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SUBCONN products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
