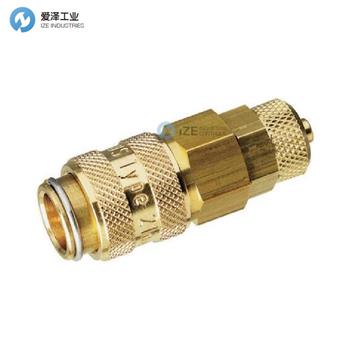

Coupling Half:

Coupler

Connection Size:

4x6 mm

Brand:

Parker, Rectus

Division:

Low Pressure Connectors Europe Division

Industry:

Electronics, General Industrial, Healthcare & Life Sciences, Transportation

Application:

Energy Management, Electronics, Food & Beverages, In-Plant Automotive, Industrial Machinery, Laboratory, Diagnostics, Pharma, Trucks & Trailers

Version:

Double Shut-Off

Technology:

Pneumatics, Fluid & Gas Handling

Product Type:

Pneumatic Quick Couplings

Product Style:

Quick-Connect

Product Series:

Series 21

Maximum Operating Pressure:

up to 35 bar, up to 507 psi

Connection Type:

Tube with Hose Nut, without Spring Guard

Connection Size:

4x6 mm

Maximum Operating Temperature:

100 °C, 212 °F

Minimum Operating Temperature:

-20 °C, -4 °F

For Fluid Type:

Chemical Fluids, Gases, Water

Flow Rate:

2.7 L/min (water)

Body Material:

Brass

Seal Material:

NBR

Sleeve Material:

Brass

Interchange Type:

European Profile

Coupling Half:

Coupler

Compatible Fitting:

Series 21 Plug

Valve Type:

Standard Valve

Function:

Double Shut-Off

Operation Type:

Sleeve

Plating Type:

Without Surface Treatment

Diameter:

5 mm (nominal)

Materials of Construction:

Brass

Hex Size:

14 mm

Specifications Met:

ATEX, RoHS

Weight:

0.032 kg

Quantity per Box:

5

Region of Origin:

Germany

Valve Included:

Yes

Outside Diameter:

16 mm

Shape:

Straight

Connection Type:

With Plastic Hose Connection
