REIKU防撞塊PAPRB-68規格
| NW (Nominal width 1 mm) | 68 |
 |
| D1 (Diameter I mm) | 102 | |
| D2 (Diameter I mm) | 69 | |
| D3 (Diameter I mm) | 79.5 | |
| L1 (Length I mm) | 48.12 | |
| L2 (Length 1 mm) | 25 | |
| H1 (Height I mm) | 90 | |
| H2 (Height I mm) | 90 | |
| CNSMASSEXACT (Weight (kg/100 pcs.)) | 12.64 | |
| VE (pcs.) | 10 |
REIKU防撞塊介紹
Description

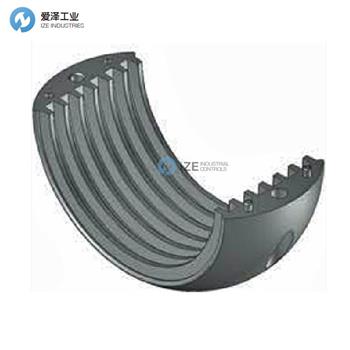

PAPRB Protector is a multiple ribbed protector that “firmly” locks into 6 of the grooves on the REIKU corrugated conduit.
The PAPRB style protector can be used to splice 2 pieces of same sized conduit together.
It can be used at at termination point to hold a Cablestar/grommet.
It can be used in creating a ball joint assembly
描述
PAPRB Protector 是一種多棱紋保護器,可“牢固地”鎖定在 REIKU 波紋導管上的 6 個凹槽中。
PAPRB 型保護器可用于將 2 條相同尺寸的導管拼接在一起。
它可用于在終端點固定 Cablestar/索環。
它可用于創建球形接頭組件
REIKU防撞塊其他常用型號:
REIKU PAPRB-68
REIKU PPA PRB-23 F/G
REIKU PA PRB-29 F/G
REIKU PA PRB-36 F/G
REIKU PA PRB-48 F/G
REIKU PA PRB-52
REIKU PA PRB-52BL*
REIKU PA PRB-68
REIKU PA PRB-70
REIKU PA RB-70BL*
REIKU PA PRB-90
