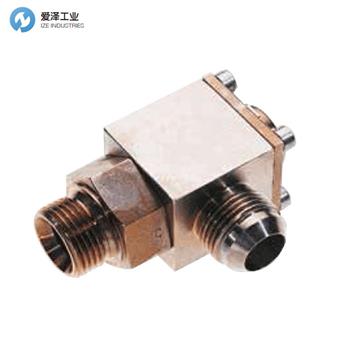

DUFF-NORTON旋轉接頭1427SRKE5產品介紹

描述：

憑借其簡單的設計，這些連接可以承受高達100巴的壓力，同時確保擺動運動或幾轉的連續旋轉。

應用行業：

- 化學，塑料，健康

- 能源，環境

- 冶金，機械和分包

- 貿易

- 礦產品

- 運輸和物流

技術數據：

端口數量：1路

流體：空氣，水，油

旋轉速度：鉸接（最高5 RPM）

工作壓力：非常低（從-0,6 bar到0 bar），低（從0到10 bar），中級（從0到100巴），高（從0到350巴）

尺寸：從1/4"到3/8"，從3/8"到1/2"，從1/2"到1"，來自1"至1"1/4，從1"1/4至1"1/2，從1"1/2至2"

材料：鋼，不銹鋼

表面處理：化學鎳

注入：角肘

工作溫度： - 20°C至200°C

連接：螺紋JIC，BSP，DIN 7608，DIN 2353 S，NPT

Description:

With their simple design, these connections allow you to carry your fluids up to 100 bar pressures while ensuring either an oscillating movement or a continuous rotation of a few rpm.

Activities:

– Chemistry, Plastic, Health

– Energy, Environment

– Metallurgy, Mechanics and Subcontracting

– Trading

– Mineral products

– Transport and Logistics

Technical Data:

Number of ports: 1 way

Fluid: Air, Water, Oil

Rotation Speed: Articulation (up to 5 RPM)

Pressure working: Very Low (from -0,6 bar to 0 bar), Low (from 0 to 10 bars), Intermediate (from 0 to 100 bars), High (from 0 to 350 bars)

Size: from 1/4" to 3/8", from 3/8" to 1/2", from 1/2" to 1", from 1" to 1" 1/4, from 1" 1/4 to 1" 1/2, from 1" 1/2 to 2"

Material: Steel, Stainless Steel

Surface treatment: Chemical Nickel

Implantation: Angle elbow

Temperature working: -20°C ~ 200°C

Connection: Thread JIC, BSP, DIN 7608, DIN 2353 S, NPT

DUFF-NORTON旋轉接頭1400SR系列其他常見型號：

DUFF-NORTON 1413SRKA1

DUFF-NORTON 1421SRKA5

DUFF-NORTON 1427SRKA5

DUFF-NORTON 1434SRKA1

DUFF-NORTON 1434SRKA5

DUFF-NORTON 1434SRKE5

DUFF-NORTON 1442SRKE5

DUFF-NORTON ROTATING JOINTS NEW + ORIGINAL+ ONE YEAR WARRANTY

愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。

如果有任何關于DUFF-NORTON旋轉接頭1427SRKE5的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。

If you have any question for DUFF-NORTON products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.

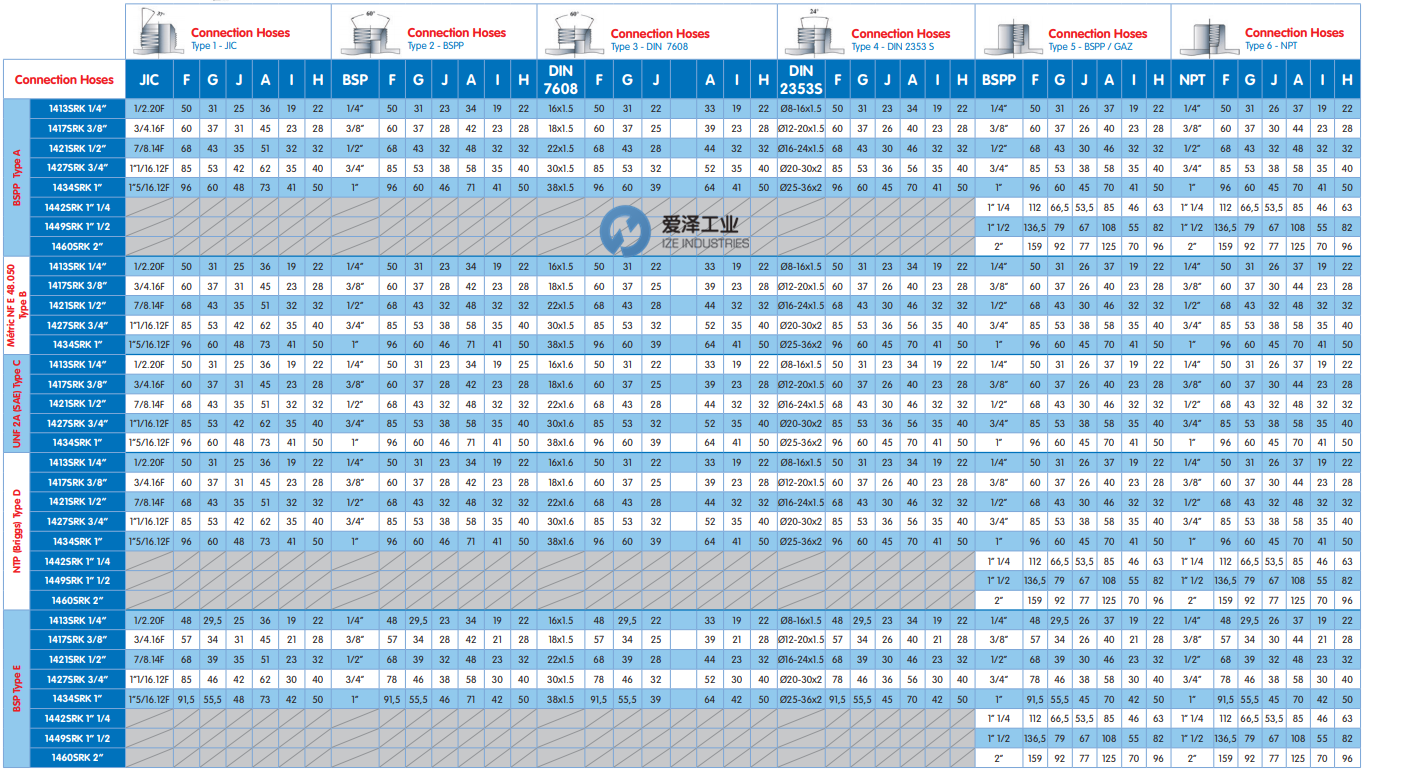

DUFF-NORTON旋轉接頭1427SRKE5產品參數
