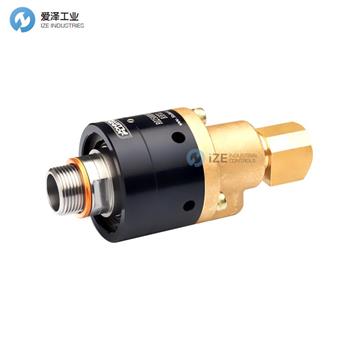

JOHNSON FLUITEN旋轉接頭RH031023542技術參數

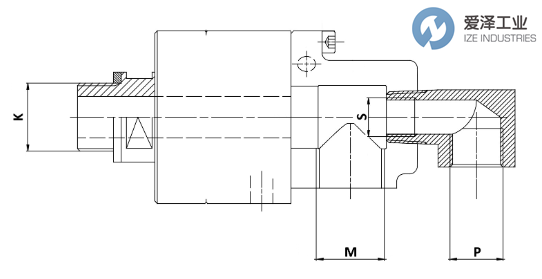

Flow | Dual Passage Fixed Syphon |
Rotor (K) | Quick Release (JF) |
Inlet M | G 1-1/4" RH (ISO 228-1) |
Seal Package | B4 |
Manufacturer | Johnson-Fluiten |
Country of Origin | Italy |
Joint Size | 1-1/4" |
Outlet P | G 3/4" RH (ISO 228-1) |
Syphon S | G 1/2" RH (ISO 228-1) |
Fluid | Water, Thermal Oil |
Temperature (max) | 180°C |
JOHNSON FLUITEN旋轉接頭RH系列介紹
RH接頭最常用于熱水或?qū)嵊图訜釟飧?。它有單通道和雙通道版本，配備旋轉或固定式虹吸管。這使得流體的入口和出口位于機器的同一側。接頭可以是螺紋連接，也可以是法蘭連接。這取決于具體應用場合和當?shù)匾蟆?/p>
The RH joint is most commonly used for heating cylinders with hot water or thermal oil. It comes in single-channel and double-channel versions, equipped with either rotating or fixed siphon tubes. This places the fluid's inlet and outlet on the same side of the machine. The joint can be a threaded connection or a flange connection, depending on the specific application and local requirements.
JOHNSON FLUITEN旋轉接頭RH系列其他常用型號：
JOHNSON FLUITEN RH031023542
JOHNSON FLUITEN RH009020675
JOHNSON FLUITEN RH009020681
JOHNSON FLUITEN RH009020674
JOHNSON FLUITEN RH009020697
JOHNSON FLUITEN RH009020688
JOHNSON FLUITEN RH012014451
JOHNSON FLUITEN RH012020689
JOHNSON FLUITEN RH019015652
JOHNSON FLUITEN RH031020902
JOHNSON FLUITEN RH031020913
JOHNSON FLUITEN RH031020928
JOHNSON FLUITEN RH031020930
JOHNSON FLUITEN RH031023693
JOHNSON FLUITEN RH038007158
JOHNSON FLUITEN RH038007794
JOHNSON FLUITEN Rotary joint NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于JOHNSON FLUITEN旋轉接頭RH031023542的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for JOHNSON FLUITEN products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
