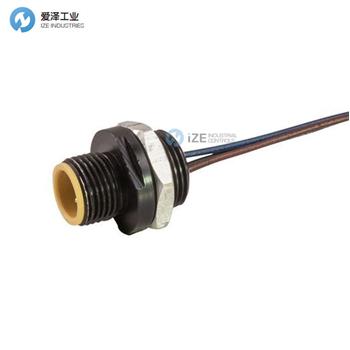

REMKE插頭104P0010M技術參數
Item | Mini Link Receptacle |
Max. Voltage | 600VAC/DC |
NEMA Rating | 6P |
Number of Conductors | 4 |
Color | Black, White, Red, Green |
IP Rating | IP67 |
Max. Amps | 10A |
Temp. Range | -4 Degrees to 221 Degrees F |
Voltage Rating (DC) | 600 |
Cable Code | Auto |
Contact Resistance (Micro Ohms) | 5 |
Contact Carrier Material | PVC |
Voltage Rating (AC) | 600 |
Locknut Material | Steel |
Maximum Operating Temperature (F) | 221 |
Conductor Color 3 | Red |
Connector Style | MiniLink |
Conductor Color 2 | White |
Current Rating (amps) | 10 |
cRU Specification | E165657 |
Contact Material | Brass, Gold Plated Over Nickel" |
Poles | 4 |
Receptacle Lead Jacket Material | PVC |
Receptacle Configuration | Male Straight |
Shell Material | Machined Aluminum |
Thread 2 | 1/2-14 NPT |
Shell Plating | Black Anodized |
Thread 1 | 7/8-16 UNS |
CSA Specification | E165657 |
Wiring Color Code | Auto CC |
Wire Gauge | 16 AWG |
Conductor Color 1 | Black |
Cable Strand | 26 X #30 |
Conductor Color 4 | Green |
Minimum Operating Temperature (F) | -4 |
Contact Sleeve | Stainless Steel |
Insert Material | PVC |
O-Ring Material | Viton |
REMKE插頭104P0010M產品介紹
插座，迷你型，公頭，4 極，1 英尺
特征
觸點先鍍鎳后鍍金，以增強耐腐蝕性和導電性；壓接到電線上的引腳和觸點確保安全端接；精密加工的觸點具有高精度的公差；重型 SOOW、SJOOW 或 STOW 電纜選項；整體式應力消除裝置和電鍍連接螺母
應用
12 和 18mm 接近傳感器；限位開關；光電開關；電磁閥和液壓閥；腳踏開關；電動工具；起重機、提升機及其控制裝置
Receptacle, MiniSize, Male, 4 Pole, 1 ft.
Features
Nickel Coated Then Gold Plated Contacts For Enhanced Corrosion Resistance and Conductivity; Pins and Contacts Crimped Onto Wires Assuring Secure Terminations; Precision Machined Contacts For Highly Accurate Tolerances; Heavy-Duty SOOW, SJOOW or STOW Cable Options; Integral Strain Relief and Plated Coupling Nuts
For Use With
12 and 18mm Proximity Sensors; Limit Switches; Photoelectric Switches; Solenoids And Hydraulic Valves; Foot Operated Switches; Power Tools; Cranes, Hoists and their Controls
REMKE插頭其他常用型號：
REMKE 104P0010M
REMKE 104P0010MHT1
REMKE 104P0010M1
REMKE 104P0010MHT
REMKE RECEPTACLE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REMKE插頭104P0010M的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REMKE products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
