KRAH-RWI電阻器VHPR 100技術參數
Type | VHPR 100 |
Resistance range Ω | R10-1K4 |
Tolerances of resistance % | F (1%); G (2%); J (5%); K (10%) |
Temperature coefficient 10-6K-1 | - 80 .. 200 |
Insulation resistance MΩ | > 20 |
Operating voltage Ub VAC ?=50Hz | 250 - 800 |
Testing voltage Up VAC ?=50Hz 1 min. | 1000 - 2500 |
Power rating W | 100 |
Derating of power linear | from 40 °C = PN to 200 °C = 0,25 PN |
Impulse energy Ws | 1000 |
max. Impulse energy (only VHPR-Types) kWs | 35 |
Protection level | IP 65 |
Climatic category (IEC 68-1) | 40 / 155 / 21 |
Temperature range °C | -40 .. 200 |
Long term test (PN 40°C 1000h) | 0.03 |
Long term environmental test (IEC 115 -1/23) | 0.02 |
Periodical change of temperature (IEC 68 2.14) | 0.02 |
Safe max. load of vibration m s-2 | 40 |
Ability to tractive power of terminals N | 100 |
Kind of terminals | 300 mm flex |
Weights g (ca.) | 240 |

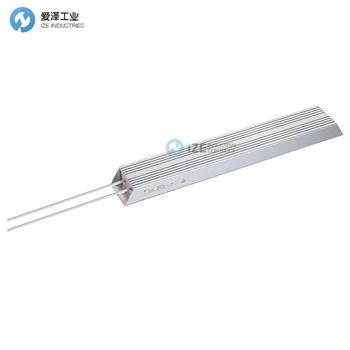

KRAH-RWI電阻器VHPR系列介紹
VHPR型電阻器為大功率電阻器，具有較高的耐受強度。 VHPR 系列的顯著特點之一是增加了脈沖堅固性。 其緊湊的外形以及引線元件的設計使得使用時電阻元件的固定和安裝更加容易。 完整的金屬保護可確保防止污垢堆積和意外接觸高溫部件。
The resistors of the type VHPR are high power resistors and have a high withstand strength. One of the remarkable features of the type series VHPR is an increased impulse solidity. Its compact form, as well as the execution of the elements of its leads, make the fixing and mounting of the resistor elements easier when using. The complete metal protection guarantees a protection against dirt accumulation and accidental contact with the hot parts.
KRAH-RWI電阻器VHPR系列其他常用型號：
KRAH-RWI VHPR 100V 40RK
KRAH-RWI VHPR 100 H 47R K 300
KRAH-RWI VHPR 500 H 68R K 300
KRAH-RWI VHPR 100 H 47RK 300
KRAH-RWI VHPR 100 H 22R K 300
KRAH-RWI VHPR 500 H 22R K 300
KRAH-RWI VHPR 300 H 68R K 300
KRAH-RWI VHPR 500 H 10R K 300
KRAH-RWI VHPR 300 H 47RK 300
KRAH-RWI VHPR 300 H 10R K 300
