AIROTRONIC繼電器THCU-E系列技術參數
SPECIFICATIONS | |
Repeat Accuracy: | ±0.1% under fixed conditions |
Time Range: | 0.1–102.3 seconds in 0.1-sec. increments |
Reset Time: | 25 milliseconds after timing cycle |
Timing Tolerence: | ±10% max ±5% typical |
Operating Voltage: | 19-265 VAC/10-120 VDC 50/60Hz |
Mode of Operation: | Delay on Make |
Storage Temperature: | -40°C to +85°C |
Operating Temperature: | -25°C to +65°C |
Transient Protection: | 18 joules varister |
Voltage Drop in “On” State: | 4 volts max / 3 volts nominal @ 1 amp peak |
Output Leakage Current in “Off” State: | 6.4 mA @ 265 VAC |
Switching Current: | 1 Amp steady state max. |
AIROTRONIC繼電器THCU-E系列介紹

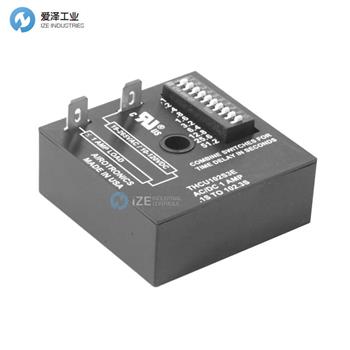

THCU 是一款通用交流/直流電壓固態定時器，采用緊湊型 2” x 2” 配置。該裝置具有寬工作電壓：19 至 265 VAC 和 10 至 120 VDC。THCU-E 提供三種時間范圍：0.1 秒至 102.3 秒（以 0.1 秒為增量）、1 秒至 1023 秒（以 1 秒為增量）或 10 至 10230 秒（以 10 秒為增量）。十位二進制撥碼開關易于編程。數字電路為該計時模塊提供了更高的準確性和可靠性。
THCU is a universal AC/DC voltage solid state timer in a compact 2” x 2” configuration. This unit features wide operating voltages: 19 to 265 VAC and 10 to 120 VDC. THCU-E offers three time ranges: 0.1 second to 102.3 seconds in 0.1-second increments,1 second to 1023 seconds in 1-second increments, or 10 to 10230 seconds in 10-second increments. Ten position binary dipswitch is easy to program. Advanced digital circuitry provides this timing module with unsurpassed accuracy and reliability.

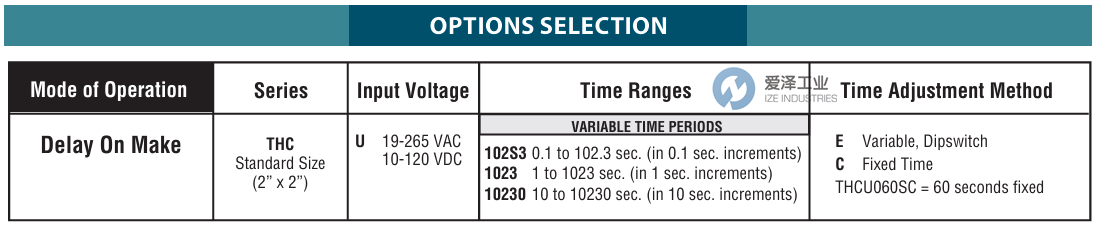

AIROTRONIC繼電器THCU-E系列選型
AIROTRONIC繼電器THCU-E系列其他常用型號：
AIROTRONIC THCU102S3E
AIROTRONIC THCU1023E
AIROTRONIC THCU10230E
AIROTRONIC TIMER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AIROTRONIC繼電器THCU1023E的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AIROTRONIC products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
AIROTRONIC繼電器THCU-E系列THCU1023E技術參數及選型
