MERSEN熔斷器FR22AR69V100T技術參數
Technical Specifications | |
Item number | H1056673 |
Catalogue No | FR22AR69V100T |
Description | High-Speed Cylindrical Fuse Protistor? Size 22x58 aR 690VAC IEC 100A With Striker |
Rated voltage AC IEC | 690 V |
Ampere Rating | 100 A |
ROHS Compliant | Yes |
AC or DC | AC |
Speed/Characteristic | aR |
Fuse Size | 22x58 |
Mounting | Clip |
Clearing I2t At Rated Voltage | 13000 A2s |
Melting I2t | 1890 A2s |
AC Max I.R./Breaking Capacity: I1 | 160 kA |
Indication System | Yes |
Indication System Type | Striker |
Connection/Terminal Material | Silver-Plated Copper |
Connection/Terminal Type | Ferrule |
Product Diameter | 22.2 mm |
Product Length | 58 mm |
Sell Pack Quantity | 10 EA |
Sell Pack Weight | 0.57 kg |
Sell Pack Width | 114 mm |
Sell Pack Length | 119 mm |
Sell Pack Height | 24 mm |
Product group | Semiconductor Protection Fuses |
Product Weight | 0.057 kg |
Power Dissipation at Rated Current Value | 17.8 W |
Body/Insulating Material | Ceramic |
MERSEN熔斷器FR22AR69V100T產品介紹
高速圓柱式保險絲 Protistor? 尺寸 22x58 aR 690VAC IEC 100A，帶引 striker
這些 Protistor? 尺寸為 22x58 的保險絲設計用于保護電力半導體，符合 IEC 60269-4 標準。它們具有極高的斷路能力，額定電流范圍廣（25A 至 135A）。目前有兩種型號：帶引 striker 和不帶引 striker。

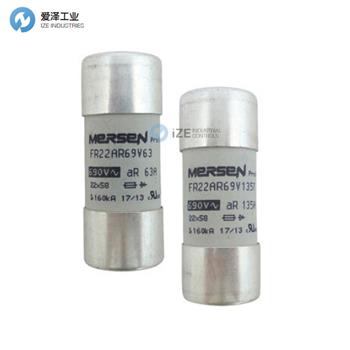

High-Speed Cylindrical Fuse Protistor? Size 22x58 aR 690VAC IEC 100A With Striker
These Protistor? size 22x58 have been designed to protect power semi conductors, complying with standard IEC 60269-4. They are extremely high interrupting rating fuses with large band of ratings (current rating 25 to 135A). Two models are existing: with or without striker.
MERSEN熔斷器其他常用型號：
MERSEN FR22AR69V100T
MERSEN FR22AR69V40
MERSEN FR22AR69V50
MERSEN FR22AR69V25T
MERSEN FR22AR69V63
MERSEN FR22AR69V32T
MERSEN FR22AR69V80
MERSEN FR22AR69V40T
MERSEN FR22AR69V100
MERSEN FR22AR69V50T
MERSEN FR22AR69V125
MERSEN Fuses NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MERSEN熔斷器FR22AR69V100T的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MERSEN products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
