AUTOMATION DIRECT觸摸屏EA9-T6CL技術參數
Brand | C-more |
Item | HMI |
Series | EA9 |
Touch Screen | Yes |
Display Size | 6in |
Viewable Size | 5.7in |
Display Type | Color TFT LCD |
Widescreen | No |
Display Maximum Colors | 64K colors |
Display Resolution | 320 x 240 pixel |
Display Video Standard | QVGA |
Touch Panel Type | Analog resistive |
Brightness | 280nits |
Display Orientation | Landscape/portrait |
Backlight Type | LED |
CPU Clock Speed | 800 MHz |
External Power Requirement | 12-24 VDC |
Housing Rating | NEMA 4/4X |
Environmental Requirements | Indoor use only |
IP Rating | IP65 |
Mounting | Panel |
A/V Port and Connection Type(s) | (1) 3.5mm mini jack - requires amplifier and speaker(s) |
Communication Port and Connection Type(s) | (1) Ethernet 10/100Base-T (RJ45) |
Mobile App Enabled | Android/iOS Remote HMI App |
Port Speed(s) | up to 38.4k baud |
Removable Media Type | SD card slot |
Programming Software | EA9-PGMSW programming software v5.0 or later |
Includes | Mounting hardware, gasket and cutout template |
Application | Hazardous location rated |
AUTOMATION DIRECT觸摸屏EA9-T6CL產品介紹
C-more EA9 系列觸摸屏 HMI，6 英寸彩色 TFT LCD，模擬電阻式，320 x 240 像素，QVGA，LED 背光，(3) 串行，(1) 以太網，(2) USB 端口，(1) 存儲卡插槽和 (1) 音頻線路輸出。

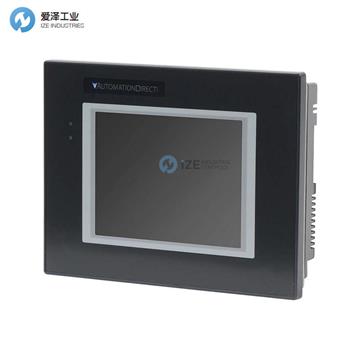

C-more EA9 series touch screen HMI, 6in color TFT LCD, analog resistive, 320 x 240 pixel, QVGA, LED backlight, (3) serial, (1) Ethernet, (2) USB ports, (1) memory card slot and (1) audio line out.
AUTOMATION DIRECT觸摸屏其他常用型號：
AUTOMATION DIRECT EA9-T6CL-R
AUTOMATION DIRECT EA9-T6CL
AUTOMATION DIRECT EA9-7CL-R
AUTOMATION DIRECT EA9-T7CL
AUTOMATION DIRECT EA9-T8CL
AUTOMATION DIRECT EA9-T10CL
AUTOMATION DIRECT EA9-T10WCL
AUTOMATION DIRECT EA9-T12CL
AUTOMATION DIRECT EA9-T15CL-R
AUTOMATION DIRECT EA9-T15CL
AUTOMATION DIRECT EA9-RHMI
AUTOMATION DIRECT EA9-PGMSW
AUTOMATION DIRECT USB-CBL-AB3
AUTOMATION DIRECT USB-CBL-AB6
AUTOMATION DIRECT USB-CBL-AB10
AUTOMATION DIRECT USB-CBL-AB15
