CABUR電源XCSF500C技術參數
Code | XCSF500C |
Type | CSF500C |
HS code | 85044083 |
INPUT TECHNICAL DATA | |
Input rated voltage | 120–230 Vac |
Input voltage AC | 90…132 Vac / 185…264 Vac (1) |
Input voltage DC | 259…370 Vdc |
Frequency | 47…63 Hz |
Current consumption | 8.4 A (120Vac) / 4.4 A (230Vac) |
Inrush peak current | 25 A |
Power factor | > 0.75 |
External protection on AC line | MT: C-16 A / Fuse: T 15 A |
OUTPUT TECHNICAL DATA | |
Output voltage range | 24 Vdc ±1% |
Output adjustable range | 24…28 Vdc |
Continuous current | 20 A at 45°C |
Overload limiting | 22 A for >5 s |
Short circuit peak current | 35 A for 5 s |
Ripple @ nominal ratings | 50 mVpp |
Hold up time | 12 ms (120 Vac) / 20 ms (230 Vac) |
Status indication | LED "DC OK" / LED "Alarm" |
Alarm contact | dry contact, max. 1A |
Parallel connection | possible |
Redundant parallel connection | already fitted with internal ORing diode |
GENERAL TECHNICAL DATA | |
Efficiency | 92% (120 Vac) / 92% (230 Vac) |
Dissipated power | 44 W (120 Vac) / 44 W (230 Vac) |
Operating temperature range | –20…+60°C (derating -8.2 W >45°C) |
Input / output isolation | 3 KVac / 60 s (SELV output) |
Input / ground isolation | 1.5 kVac / 60 s |
Output / ground isolation | 0.5 kVac / 60 s |
Standard / approvals | EN 60950-1 |
EMC Standard | EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4 |
Overvoltage category / pollution degree | II / 2 |
Protection degree | IP 20 |
Connection terminal | 4 mm2 / 4 mm2 |
Housing material | aluminium |
Dimensions (LxHxD) | 80x139x127 mm |
Approximate weight | 1.3 kg |
Mounting information | vertical on a rail, 10 mm from adjacent components |
ACCESSORIES | |
Mounting rail (IEC60715/TH35-7.5) | PR/3/AC, PR/3/AC/ZB, PR/3/AS, PR/3/AS/ZB |
Mounting rail (IEC60715/TH35-15) | PR/3/PP, PR/3/PP/ZB, PR/3/PA, PR/3/PA/ZB |
Marking tag | TAP207A , TAP128A , TAP178A , TAP209A |
CABUR電源XCSF500C產品介紹

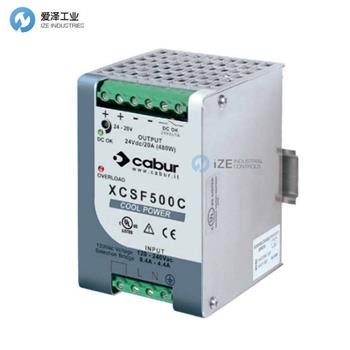

CSF500C 單相電源輸入 120-230Vac / 輸出 24Vdc 20A
? 單相輸入
? 短路、過載、輸入和輸出過壓保護
? 過溫保護
? 適用于需要高可靠性和性能的應用
? 智能報警觸點，當輸出電壓下降超過 10% 時發出信號
? 高過載能力，確保保護選擇性和重負載啟動
CSF500C Single-phase power supply input 120-230Vac / output 24Vdc 20A
? Single phase input
? Short circuit, overload, input and output overvoltage protections
? Over temperature protection
? Suitable for applications that require high reliability and performance
? Smart alarm contact, signals when output voltage drops more than 10%
? High overload capability to ensure the protections selectivity and start-up of heavy loads
CABUR電源CSF系列其他常用型號：
CABUR XCSF85B
CABUR XCSF120C
CABUR XCSF120CP
CABUR XCSF120DP
CABUR XCSF240C
CABUR XCSF240CP
CABUR XCSF240DP
CABUR XCSF500C
CABUR XCSF500D
